Hormann ET500 Up and Over

The Hormann ET500 is a garage door originally designed specifically for high usage and large sizes and therefore has the strength and construction properties of a commercial specification door. Originally designed with a mesh type panel for high levels of ventilation, it was designed for use in underground car parks. However it has evolved to become a very useful garage door to use when the requirement involves sizes up to 6000mm wide and 2500mm high regardless of the frequency of use, this is a garage door of real strength and durability.

It is the ideal chassis for any garage door requiring the use of oak timber or other heavy timber species which can be infilled by your joiner on site or at their premises to ensure continuity on your new build or renovation project. It is available in large sizes and is always electrically operated without massively intrusive internal tracking into the garage, so is ideal for garages with high or vaulted ceilings

Hormann et500 garage door with custom timber infill   hormann et500 up and over garage door with custom design

The ET500 is a highly cost-effective garage door which ensures long-term functional reliability as well as offering extremely quiet operation. The door itself requires very little maintenance to continue opening and closing easily, quietly and safely with its wear-free counter weight technology.

All the doors within this range are made to order for a perfect fit and always come complete with a steel sub frame for installation directly to the structural opening of the garage.

Every Hormann ET500 door are constructed using galvanised steel and can have the sub frame powder-coat coloured to a choice of 'special' colours or the any RAL colour option with the main door panel either matching or a different finish. A range of different handles are available for the pedestrian wicket door option as well as door closers and hold open devices. A range of matching side doors, are also available in purpose made sizes.

With the Hormann ET500 up & over garage doors coming in the large sizes they do, it allows for both plenty of width and plenty of height to easily access the garage.

Call us on 0800 525 442 for a free quote

Advantages At A Glance

  • Smooth, quiet door travel
  • Massive size range to cater for most garages built
  • Tested combination of door and door operator for low operator wear, long service life, high operational safety and low operating costs
  • Door construction designed for at least 250,000 door cycles
  • Low required headroom, ideal for tight spaces. An optional sub frame is available for fitting situations without lintel and side room
  • Galvanised, powder-coated door leaf in RAL 9006 White Aluminium - more RAL colours available on request
  • Minimum swivelling out of door leaf
  • Double lifting cables and counter weight technology for safety, low wear and permanent reliability of door qaction
  • Synthetic rollers with ball bearing
  • Available with wicket door and matching side door for co ordination

Hormann ET500 Garage Doors Overview

Hormann et500 style 412 with round steel sheet perforations

Hormann ET500 Style 412

Door panel is perforated steel sheet with round perforations

This style is also available with a wicket door built in for pedestrian access and this can be to the left or the centre of the main door panel.

Hormann et500 style 413 with square steel sheet perforations

Hormann ET500 Style 413

Panel is perforated sheet steel with square perforations

This style is also available with a wicket door built in for pedestrian access and this can be to the left or the centre of the main door panel.

Hormann ET500 Style 420

Hormann ET500 Style 420

Panel is aluminium sheet infill

This style can have a wicket door built in for pedestrian access to the left or centre of the main door panel

Hormann ET500 Style 480

Hormann ET500 Style 480

Panel is horizontal profile steel section with optional glazed sections in Duratec 16mm double pane clear glazing

Hormann ET500 Style 405

Hormann ET500 Style 405

Panel is as an open for infill framework for on site infilling with timber and an overlap on the frame section and up to 6000mm wide

This style can have a wicket door built in for pedestrian access to the left or centre of the main door panel up to 5000mm wide

Hormann ET500 Style 400

Hormann ET500 Style 400

Panel is an open for infill framework for on site infilling with timber inside the frame and up to 6000mm wide

This style can have a wicket door built in for pedestrian access to the left or centre of the main door panel up to 5000mm wide


All the ET500 garage doors are supplied with a Hormann Supramatic H heavy duty electric operator which can have any of the vast range of Hormann access controls added for complete control and security. For very high use the ITO 400 operator is used.

Click here to get a free quote

Hormann ET500 Electric Operation

The Hormann ET500 range of is available with a choice of 2 electric operators to offer you the comfort of operation from the simple click of a remote control handset. Many other access controls allow you to tailor your daily useage depending on your house shape and personal access requirements as well as involving other family and friends when required.

Hormann Supramatic H

Hormann Supramatic H

The Hormann Supramatic H is perfectly matched to the Hormann ET500 garage door range. It is especially recommended for collective garages in buildings with flats, hotels or office buildings - it can also be used in a domestic environment too.

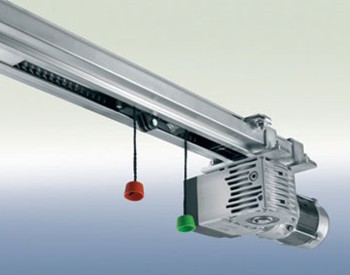

Hormann ITO 400 / ITO 400 FU Chain Drive

Hormann ITO 400 / ITO 400 FU Chain Drive

The ITO 400 chain drive is equally suited for doors in high-traffic underground agrages as well as in the commercial sector

Function & Safety

  • Emergency release from inside
  • "Soft" start and stop for a gentle and quiet door travel
  • Integrated lighting with 2-minute light set at the factory
  • Patented door locking in the operator boom
  • Settings directly on operator via the operating panel
  • Includes photocell

Area Of Application

  • Recommended for use in areas with upto 50 parking spaces
  • Pull/Push force - 1000N
  • Short term peak load - 1200N
  • Can be expanded through additional units (activating kit for warning light, traffic control)

Function & Safety

  • "Soft" start and stop for quiet and gentle door travel in the frequency converter version (FU).
  • Emergency release via Bowden cable
  • Operator and control are protected against hose-water (IP 65)
  • Settings via control panel on a separate control

Standard Safety Accessories

  • Roll-up safety device
  • Door and side closing edge safety device
  • Photocell

Area of Application

  • Recommended for use in areas with over 50 parking spaces
  • Can be combined with different controls (depending on requirements)
  • Can be expanded through additional units (activating kit for warning light, traffic control)
