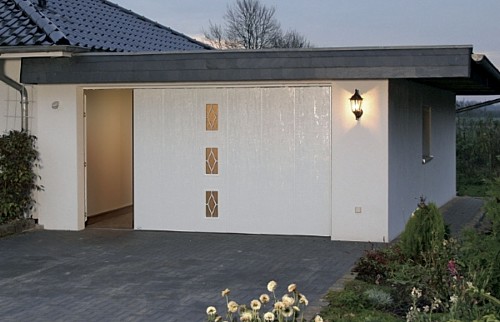

The Novoferm side sectional door panel is made of self-supporting steel construction, double skinned with CFC-free foam between two steel cover skins, fully galvanised, with base paint.
A woodgrain texture is on the outer face of all panels, all styles (narrow rib, flush, panelled) and the standard colour is white (RAL 9016).

Panel thickness is 45mm with heat insulation value of K=0.5W/m2K.

Galvanised header track with fastening anchor.

Floor track with pre-formed bends made of stainless material. Double curve for smaller side rebates in the bend zone.

Header, floor and side seals are pre-assembled (continuous brush seal on 4 sides)


Dimensions
Side rebate - lock side must be at least 90mm
Side rebate - curve side must be at least 450mm
Headroom must be at least 120mm
Special designed double curve and blind sections are possible
Floor screed (where used) must be at least 35mm thick
