Product Details
Click on image to view the larger version



Manufacturer
: Hormann
Door Type
: Sectional Doors
Material
: Steel

This classical style of garage door will blend with any property.

To make an enquiry about this product, please click the button "Make an enquiry" below this message, or call 0800 525 442
Product Details

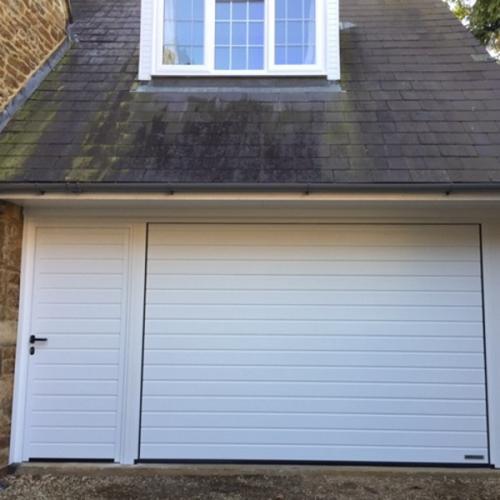

The Hormann LPU 40 S Ribbed sectional garage door is produced to the classical standard garage door design of narrow horizontal ribbing. Elegant and refined with perfectly formed symmetrical spacing between the ribbing, the transitions between the sections are barely visible. With four vertical ribs on each panel, four panel doors have a total of 16 horizontal ribs – all perfectly uniform. As well as it’s timeless appearance, the Hormann LPU 40 S-Ribbed sectional door has some amazing safety features including ‘no crush’ zones created by the unique shape of the door sections. This form of finger trap protection is actually unique to all Hormann and is a feature of all of their sectional doors. Additionally the side frames are closed from top to bottom, completely eradicating gaps between the door leaf and frame preventing fingers becoming trapped or crushed.

42mm thick 100% CFC-free rigid PU foam filled panels render this door perfect for achieving maximum insulation. The 42mm thick insulation using 100% CFC-free rigid PU foam gives the door greater stability and makes for quiet operation. If the garage is used as a working or hobby room certainly the reduction in draughts will create a more comfortable constant temperature to say nothing of the saving on energy costs. The weather seals between the panels and around the four sides of the door add even more insulation.
The finish is an attractive, authentic wood grain and the panels are coated in high-quality polyester primer – robust and tough enough to provide excellent weather resistance.

The short video below shows the unique features of a Hormann insulated sectional garage door

Surface Finishes
The Hormann S Ribbed sectional garage door is available in three different surface finishes - an authentic sawn timber look in Woodgrain, a silky-smoot elegant finish in Silkgrain & an embossed smooth steel surface pattern in Micrograin.


Woodgrain

Silkgrain

Micrograin

Colour Finishes
Hormann steel sectional doors are finished as standard in white polyester paint (RAL 9016) - a finish which if you wish can be lightly rubbed down and painted. Most people don't bother to do this as Hormann offer a comprehensive factory finished RAL colour range as an optional finish to the exterior - over 400 RAL colours to choose from!

A limited range of RAL colours are also available at special prices with faster delivery times from Hormann - 16 colours to choose. The door panels also have subtle differences in that all of the door designs are either a woodgrain or silkgrain finish, woodgrain being as it describes - with a robust, woodgrain structured surface and silkgrain a smooth elegant surface with extra reinforcement in the exterior face of this option.

RAL 7040 Window Grey sectional door colour
RAL 7040
Window Grey
RAL 7030 Stone Grey sectional door colour
RAL 7030
Stone Grey
RAL 7035 Light Grey Hormann sectional colour
 RAL 7035
Light Grey
RAL 1015 Light Ivory sectional garage door colour
RAL 1015
Light Ivory
RAL 5014 Pigeon Blus sectional colour
RAL 5014
Pigeon Blue
RAL 5003 Sapphire Blue garage door sectional colour
RAL 5003
Sapphire Blue
 RAL 5011 Steel Blue colour for sectional
RAL 5011
Steel Blue
RAL 9006 White Aluminium garage door colour
RAL 9006
White Aluminium
 RAL 8003 Clay Brown sectional door colour
RAL 8003
Clay Brown

RAL 8001 Ochre Brown colour
RAL 8001
Ochre Brown

RAL 8028 Terra Brown
RAL 8028
Terra Brown
RAL 3003 Ruby Red sectional door colour
RAL 3003
Ruby Red
RAL 6009 Fir tree Green Hormann sectional
RAL 6009
Fir Tree Green
RAL 6005 Moss Green sectional colour
RAL 6005
Moss Green
RAL 7016 Anthracite sectional door colour
RAL 7016
Anthracite
Anthracite CH703 from Hormann
CH703
Anthracite


More recently the Decograin range has taken the UK by storm - 6 beautiful woodgrain laminate finishes with unique embossed graining offering either Golden Oak, Dark Oak, Rosewood, Light Oak & Night Oak as a fully finished surface. For more information, please view the Hormann LPU40 S Ribbed Decograin page.

Thermal insulation
Double-skinned steel doors 42 mm
Section U = 0.50 W/m2 K
Door leaf U = 0.90 W/m2 K
Fitted door 1) U = 1.30 W/m2 K

Acoustic insulation
Double-skinned steel doors 42 mm R = approx. 22 dB

Wind pressure
Double-skinned steel doors 42 mm class 3

Maximum Door Sizes
Width 5500mm Height 3000mm
Glazing Options
16mm double pane in clear (DS) or crystal structure (DK)
Type D

Handles
The Hormann LPU 40 is manufactured with no pre-drilled handle hole as standard. This is to offer a smooth door finish on doors with electric operation which do not require a handle. If a handle is required, a selection of handles are available from the selection below at a surcharge.

Black
synthetic plastic

White
cast aluminium

New Silver
cast aluminium

Brass
cast aluminium

Polished
stainless steel

Brushed
stainless steel

Bronze
cast aluminium

Suitable Operators
Both the Hormann Promatic and the Hormann Supramatic are the perfect remote controlled operators for the Hormann LPU 40. They both come supplied with an integral receiver, automatic locking, automatic safety cut-out, emergency release from inside, and a soft start/soft stop function to minimise door wear and tear.

Hormann electric garage door operators are supplied with 2 transmitters as standard when purchased. Other remote transmitters and access control systems are available from the selection shown below and other controls are available to link in with Homelink systems and also vehicle transmitter systems.


HS 1 BS

Hand Transmitter
(1-channel)

HS 4 BS

Hand Transmitter
(4-channel)

HS 5 BS

Hand Transmitter
(5-button)
Hormann HSP 4 Hand Transmitter keyring four button

HSP 4
Hand Transmitter
(4-function)


HSE 2 BS

Micro Hand Transmitter
(2-channel)
To view the whole range of Hormann remote control accessories, view the Hormann Remote Control Operators page.
