Vertico Insulated Aluminium

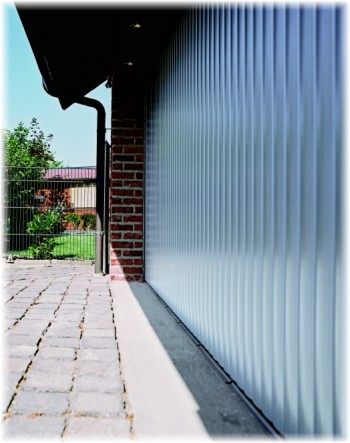

Vertico round the corner garage doors

The SWS Vertico. An insulated aluminium round the corner garage door is a door made precisely to your measurements and requirements without any extra charge.

Manufactured in Germany to stringent engineering standards, the incredibly elegant Vertico garage door provides numerous benefits to you and your garage inside and out.

There is very little encroachment of internal vehicle driving area and, with the horizontal track running arrangement, driveways are kept clear to enable maximum parking area outside of the garage.

The Vertico door is constructed of the highest quality insulated aluminium slats with an exceptionally high quality powder coating finish inside and out for a long lasting low maintenance garage door system

Each Vertico garage door is made precisely to measure for every opening and it will be fitted to maximise the available width and height for convenience when entering or exiting your garage.

The Vertico garage door comes as standard with radio remote control, motor drive and electronic hindrance stop. Two programmable door opening positions enable the user to have the choice of either car access or a narrower pedestrian access at the simple push of a button.

The electric motor guide channel is integrated elegantly into the wall guide channel not down the centre of the garage like traditional motor drives keeping the centre of the garage free of tracking. Some people worry about losing a wall in their garage but you can either create a false wall and shelving system and the door goes behind this wall or take the view that this wall needing to be used for the door will force you to keep your garage tidy at all times!!

View the SWS Vertico in our Product Catalogue

Unlike older timber round the corner systems with channel guides cut below floor level the Vertico offers a surface mounted raised ground rail which also acts as a weather bar - not a pebble or dirt trap! The components have been designed as one complete system ensuring a precise operation at all times.

sws vertico aluminium affordable round the corner roller shutter garage door prices call us now

Up until recently the only garage door systems sliding round the corner were constructed from timber panels installed together on site with a choice of hardware from companies such as Hillaldam Coburn, Henderson or Ellard. Although this method can still used today it is very time consuming to manufacture and install, expensive to construct and does not offer particularly good sealing properties. The automation of such a system is also very difficult to certify to the latest safety standards - whilst also being very expensive.

The Vertico has been specifically designed as a remote control door system as standard with emphasis on solving all previous shortfalls in other round the corner garage door systems.

Each door includes as standard the following:

* Any size up to 5600mm wide
* Requires only 50mm lintel headroom internally
* Only 130mm degree of radius at the corner to save lateral wall space.
* Superior surface stability
* Partial remote control opening option for pedestrian access
* Purpose made to size as standard
* Motor guide channel integrated into wall guide channel
* Highest quality aluminium slats - double skinned, foam filled, insulated
* Radio remote control operation with electronic safety stop sensor
* Emergency unlocking from inside
* Courtesy light when door is opened switching off after a few minutes   automatically
* All components high quality powder coated in large choice of colours
* Top and bottom roller for smooth, silent operation

Available in 10 standard colours the Vertico can also be finished in a further 36 Renolit woodgrain finish colours at an exytra charge. The Renolit woodgrain finishes are very tough and carry a 10 year gurantee to back this up. Beautiful woodgrain effects such as light oak, dark oak, natural oak, Rosewood, Oregon Pine and many others to ensure the best co ordination with your home

Vertico top and bottom track detail Vertico plan survey drawing Vertico bottom track detail
Technical Details

This diagram shows the Vertico door top and bottom track detail as viewed from the side and the small amount of headroom required to accomodate the door.

The top track fixed to the back of the lintel or the ceiling depending upon headroom available. The bottom track can be lowered into the floor for a lower threshold if required but as standard does perform a very good weather barrier.

Vertico is made according to the new EU standards

Call free on (0800) 525442 for further details, brochures and prices.

Plan view of the Vertico garage door and wall mounted remote control electric operator system.

The Vertico garage door can be specified to open in either direction and if there is not sufficient side room a false panel section can be inserted. For very large openings bi-parting doors are possible in even or uneven widths.

There are just things that are better made of aluminium!

Vertico round the corner garage door with remote control automation Summary on Vertico garage doors
Aluminium is the best possible metal for constructional products that are daily exposed to weather and that need to be light and at the same time sturdy. Therefore Vertico door systems consist mainly of aluminium components.  Aluminium is corrosion-free and the surface of Vertico aluminium garage doors are additionally coated by a high-quality thicklayer stove enamel paint. Aluminium garage door profiles still offer further advantages:

CFC-free foaming:
Advantage: silent running, resonance-free, torsion proof

Grooves in profile:
Advantage: higher stability of profile and better optical characteristics

Absolutely colour and light fast:
Advantage: no recoating, colour brilliance for decades

Absolutely safe in function:
Advantage: Aluminium is a sturdy and rot proof metal. But it is all the same very light. The garage doors made of aluminium can always be operated with the very lowest of problems over the years.

The Vertico garage door is the door for a modern day lifestyle with all the added benefits of reliable operation and security combined with stylish good looks and a range of colours and finished to compliment any home.

Call free now for up to date competitive prices or email your requirements




Vertico round the corner doors are available in one door up to 5600 mm wide or a  massive 11000 mm wide as a biparting system. Heights up to 3000mm. All doors are purpose made to suit.


On a double width garage you can open half way to give access to one vehicle only and not have to open the entire garage door in the process saving heat and keeping things out of sight.
