Hormann Sectional

Hormann Sectional Garage Doors


A world leader in garage and industrial doors, Hormann offer the most complete range of insulated sectional doors for commercial and domestic use, with the highest levels of attention to safety, quality and technology.

With over 30 years of knowledge and experience, we will certainly be able to assist you in attaining the right size and specifications for your garage: Standard UK, European metric and purpose-made sizes are available in nearly all the various steel and timber designs.

The sectional garage door probably offers the best value for money in terms of a modern, highly engineered and technically superior product with exceptional levels of sealing, insulation and security compared to various other doors on the market.

Hormann Sectional Garage Doors Hormann Glass Sectional Garage Door

Overview of features:

Fully sealed perimeter - With rubber seals and close fitting to steel framework. The large bottom rubber seal on a level floor will prevent leaves and dust, etc.

Vertical operation - Meaning you can park your vehicle right up to the door inside or out, whilst still being able to open and close it.

Excellent security - Provided by 5 encapsulated rollers in steel hinges either side of a standard door, and a rotary latch locking mechanism with europrofile cylinder locking as standard - of course the double skinned doors are very strong against physical attacks.

Easy operation - Due to the spring mechanisms assisting the door during most of the operation, unlike an up and over type garage door, the doors are surprisingly easy to operate.

Paint finishes - Standard on all doors inside and out with bright white (RAL9016) finish externally and off white (RAL 9002) internally - no need to paint. A new range of silkgrain finishes are now available, including the superb 'Titan' finish.

Remote control ready - Due to the retractable tracking mechanism of a sectional door, they are ready to have a standard boom electric operator fitted with no further adaptions required.

Full drive through - No reduction in the drivethrough width - a 2286mm wide door gives you 2286mm when open. With the N track mechanism, you get the full height and only lose approx. 50mm on the Z track mechanism when fully open.

10 year guarantee - On the entire door and mechanism.

For further understanding of Hormann sectional garage doors, view the video below which specificually focusses on the LPU 42 insulated model.

Sizes

Domestic sectional doors are available from 2 metres wide, right up to 6500mm wide in most of the different designs that are available - heights are available up to 3000mm for most panel designs.
If you have a very wide opening we can also offer a 'Combi door', a commercial door specification for the operating mechanism, however it uses domestic insulated steel panels, and is available up to a massive 7.5 metres wide!

Designs

You are able to choose from a wide variation of the classic Horizontal Ribbed, smooth Unribbed design, or 'Georgian' panelled designs. Variations of each design create a very different visual appearance.

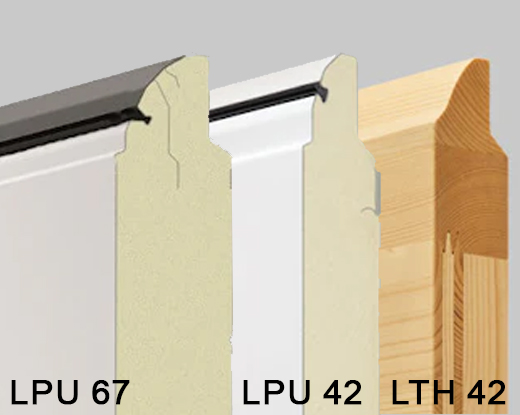

Some of the designs are only available in either the single skin LTE 42 range or the double skinned 42mm LPU 42 range.  There is also a complete range of designer sectional doors with artistic design elements incorporated into the door panels. These designer doors are all LPU 42 insulated panels with optional glazing elements.

The LPU42 sectional garage doors can have matching front entrance doors for the perfect visual finish. Hormann Double width Sectional Garage Door

The high quality LTH 42 timber door range offered by Hormann again has 2 basic designs - the classic horizontal boarded design and the 'V panel' raised and fielded panel design - however the clever use of computer factory routing in either Nordic pine or Hemlock timber means you can create your own garage door design - a service offered by Hormann from their factory in Germany.

Some standard designs are also readily available, a good example being the superb design 405, recreating a double leaf barn door effect with optional false hinges to finish the overall effect.

Finishes

Hormann steel sectional doors are finished as standard in white polyester paint (RAL 9016) - a finish which, if you wish, can be lightly rubbed down and painted. Most people don't bother to do this as Hormann offer a comprehensive factory finished RAL colour range as an optional finish to the exterior - with over 400 RAL colours to choose from!

A limited range of standard RAL colours are also available at special prices with faster delivery times from Hormann -  with 15 colours to choose from.
The door panels also have subtle differences in that all of the designs are either a woodgrain or silkgrain finish - woodgrain being as it describes - with a robust, woodgrain structured surface, and silkgrain a smooth elegant surface with extra reinforcement in the exterior face of this option.

The Decograin laminate foil coated range is a range quite unique to Hormann - there are various beautiful woodgrain laminate finishes with unique embossed graining and offering either Golden Oak, Dark Oak, Night Oak, Rosewood, Winchester Oak and Titan Metallic as a fully finished surface with a 10 year guarantee - a perfect match to many Upvc windows and external timber features.

See below to see the Decograin range.

Horman Decograin for Sectional Doors - Dark Oak

Dark Oak

Horman Decograin for Sectional Doors - Golden Oak

Golden Oak

Horman Decograin for Sectional Doors - Night Oak

Night Oak

Horman Decograin for Sectional Doors - Rosewood

Rosewood

Horman Decograin for Sectional Doors - Titan Metalic

Titan Metallic

Horman Decograin for Sectional Doors - Winchester Oak

Winchester Oak

Mechanisms

Hormann offer two basic operating gear types - tension springs (Z track) in the side channels for doors up to 3048mm wide, and overhead torsion springs (N Track) for doors over 3048mm wide. Side tension springs, or 'Z track' sectional doors, only require 100mm of headroom as the curve in the tracking can be a tighter radius than the larger doors.

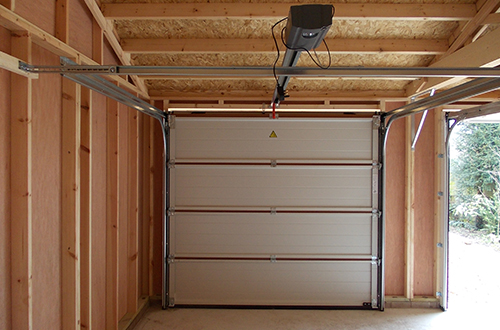

Interior view of sectional garage door mechanics

Torsion springs, or 'N track' sectional doors, require 210 mm of headroom as the spring mechanism is directly above the top door panel and the track curve is not as tight.

All the larger sectional door systems have a low headroom option (L Track), where the torsion spring is relocated to the rear of the horizontal tracks and the headroom requirement reduced to as little as 100mm. Final drive-through heights are usually comprimised slightly, with reduced headroom options as the bottom door panel section cannot be pulled fully clear of the opening - it is however, always usually higher than an equivalent height up and over door.

Special requirements can be accomodated with extra high tracking available if the ceiling is higher than normal, keeping the garage space clear.
This gear is known a 'H track' gear and is available to order and priced is accordingly. This will put the horizontal tracks as high as possible in your garage to maximise space or ensure the tracks miss an obstacle such as a gas meter or similar.

'Combi sectional doors,' with the commercial torsion spring system, will require 390mm as standard as the spring is a lot bigger to assist the weight of the larger doors (up to 7500mm wide). A lot more attention has to be given to the spring support fixing points with this gear as the tension in the springs is much higher.

For many installations, internal restrictions may prevent full width or full height sectional doors being used, and then infills and trims will be required to seal up the sides or the top, or both. Hormann have many different products to enable this to be as professional as possible where required rather than using timber or Upvc sections that will not match exactly.

Optional Extras -  Many options are available in the sectional door range, including:

» Windows for all designs in single and double glazed units
» Handle materials and colour options » Headroom arrangements including high lift tracking for high ceilings

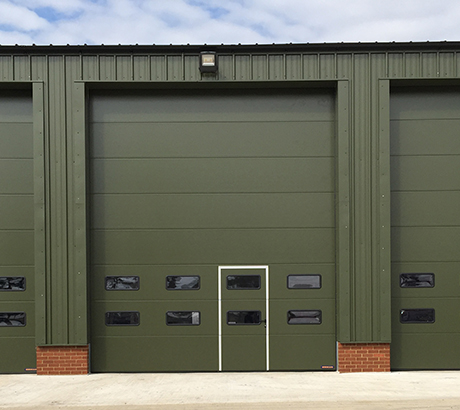

» Extra wide doors with industrial specification operating gear

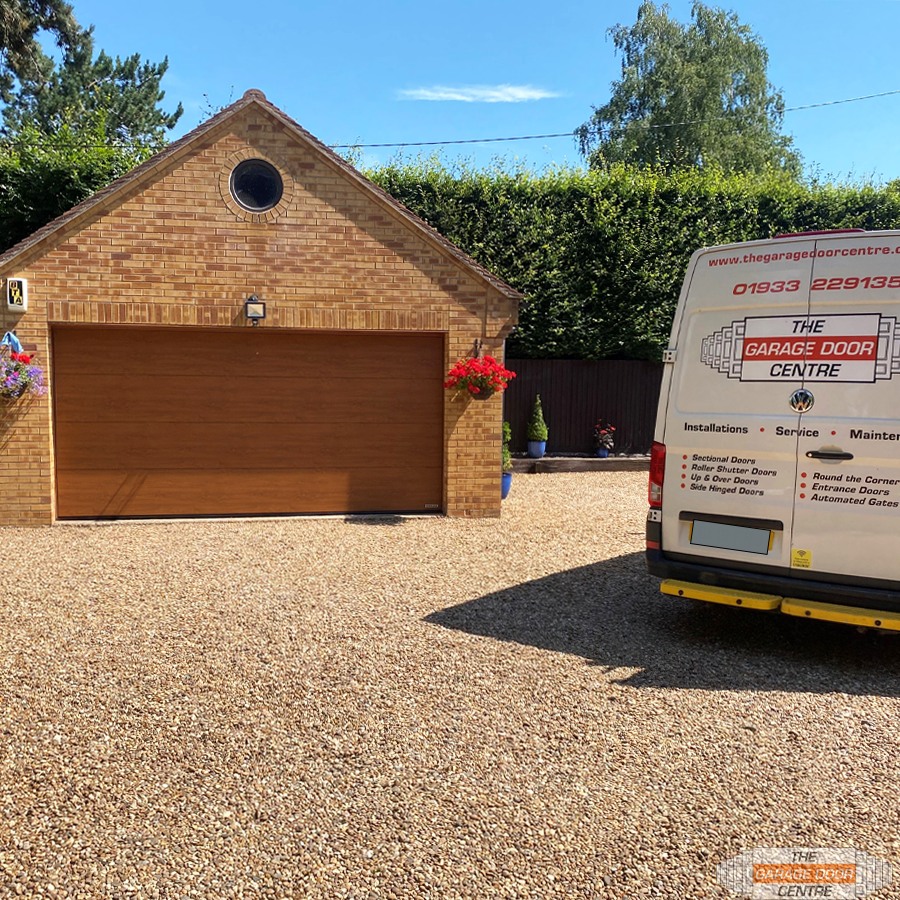

» Bespoke timber designs to your drawing design
» Matching Front Entrance Doors and side doors
» Pedestrian access door inside main garage door

Visit The Garage Door Centre Showroom

Benefits

Sectional garage doors really do provide a secure, well sealed door solution for any garage opening. The vertical opening is a major benefit for shorter driveways. The unrestricted drive through when open is a must for today's wider vehicle designs. The all round sealing is perfect against our British weather. The double skinned door panels offer maximum insulation and strength for long lasting use and excellent security.
The superb engineered gear mechanism gives very easy opening and closing when manually operated. All in all it is the perfect garage door in many ways and being so hignly engineered is just the icing on the cake. This is a real high quality door mechanism.

When you consider all the benefits that a sectional door can offer, it is hard to even consider any other type of garage door. Additionally, they can be excellent value for money compared to any garage door the same size, especially when you consider all the standard features not available on other doors.

All Hormann sectional garage doors, at any size, can be manually or electrically operated with a massive choice of control mechanisms from basic remote control to finger readers, timers, card readers, etc. You can create your own unique door with a tailor-made access control system to suit your lifestyle and family environment.

Download and print out our safety checklist to check other makes against the Hormann - Download PDF

Call us now free on (0800) 525442 or E-mail for prices and details.

The Hormann LPU42 and LTE40 door ranges offers the very latest in design, safety, technology and innovation from a company established throughout the world and known for high quality and choice.

The table below shows the majority of the door designs available by panel finish, door design and panel thickness available i.e single or double skinned. The individual garage door design range in the timber is available to recreate almost any design required by computer controlled routing into composite timber panels.

These pictures are all Hormann sectional garage doors and matching front entrance or side doors all available from the vast Hormann door range.

M ribbed white sectional and matching side door
M Ribbed sectional & matching side door
L ribbed silkgrain sectional
L Ribbed silkgrain sectional double door
designer sectional garage door and front door to match
Designer Style 457 & matching front door
s Ribbed in dark grey colour finish
S Ribbed double sectional door
special routed timber double sectional
Hemlock sectional door with white finish
M Ribbed sectional and side door in red
Pair of red finished M Ribbed garage doors
style 405 timber sectional door in green finish
Hemlock timber sectional with fake hinges
S ribbed nordic pine and side door to match
Nordic Pine sectional in arched opening
M ribbed and side door to match
M Ribbed sectional and matching side door
S ribbed LPU sectional in golden oak
Decograin Golden Oak finish on an LPU 40
L Ribbed sectional and side door
L Ribbed silkgrain garage door & side door
s panel and matching side door in white woodgrain finish
Pair of S Panel sectional garage doors
Style 452 anthracite finish matching front entrance and garage door
Style 452 sectional garage and front door
Nordic Pine S Ribbed sectional door
S Ribbed LTH 40 Nordic Pine
C panel sectional door in white with windows
Twin sectional garage doors C Panel design
