The Carteck insulated sectional garage door is manufactured in Germany to a very high specification and is a garage door combining security, style and safety as standard

Security Features

Carteck sectional garage doors offer security as standard with multilatch two point locking and optional bolts on all manually operated doors. Patented, galvanised, wear resistant hinges make the interlocking door panel sections extra secure, with quadruple folded steel at all hinge fixing points for solid attachment of the hinges to the panel sections.

Each door panel section is incredibly strong by design with double skinned high strength galvanised steel enclosing a rigid layer of environmentally friendly insulating foam in 40mm thick panels.

The door when closed is held within the frame and tracks at 10 separate points to ensure a solid, tight fit with no obvious gaps for the opportunist thief to attempt to jemmy.

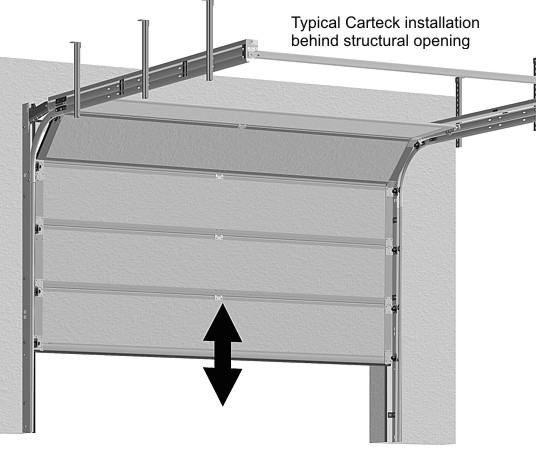

A sectional garage door operates vertically and does not go through the opening at any point during operation. Available up to nearly 6 metres wide at almost any size and 3 metres high it has the versatility for many openings where traditional up and over doors just won’t work – even if the opening is arched.

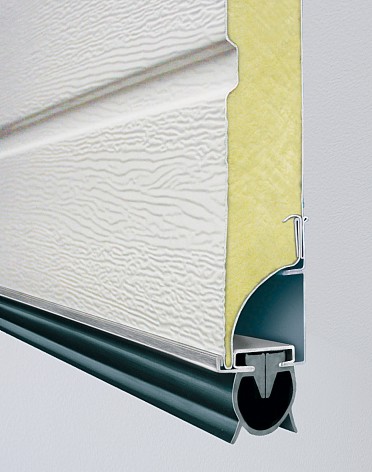

Rubber sealing is standard to the sides and head of the steel frame with a large rubber compression seal affixed to the bottom panel to prevent leaves, dust, rain and the like from entering your garage.

The operation movement of a sectional garage door ensures very good clearance during opening and closing to give maximum use of garage length especially if keeping a large 4 wheel drive vehicle or van with a tall flat rear end.

The drive through width and height are also maximised when the door is open.


Style

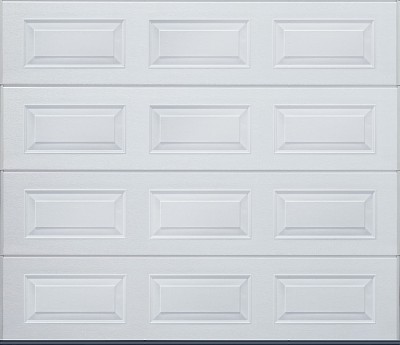

The Carteck sectional doors are available in many attractive designs – Georgian panelled and Horizontal ribbed being the 2 most popular - both options in 40mm panel thickness.

A woodgrain textured finish to the surface of each door panel is standard, pressed into the steel material before final finishing although the lamiante finish doors are a smooth steel surface.
Carteck sectional doors are available in a choice of three finishes – polyester powder coated, high grade laminate woodgrain or polymer paint finish, all giving a beautiful low maintenance, durable exterior.


Carteck sectional garage doors are all built to last with a two year warranty on all parts and a five year warranty on safe and reliable operation. A further ten year warranty is given on the exterior finish.

Safety

The Carteck sectional door is designed for absolute ease of operation with a unique multiple spring tension system ensuring a very smooth and easy operation at any of the available sizes, large or small.
The door also incorporates a host of innovative and protective safety features to make it one of the safest you can buy.
Double cables on each side and multiple springing support the door in the unlikely event of spring or cable failure, meaning the door will not drop and can still be opened or closed. The springs are also fully enclosed in trays at high level well out of the way of fingers.

Interior and exterior finger protection also feature as standard on any Carteck sectional door, preventing dangerous narrow openings between panel sections during operation.


In addition hand protection at the side of the guide rails prevent accidents between the frame and the guide rail.

All remote control electric versions of the Carteck are recommended to be installed with either the Cardale DC650 or 850N belt driven operator or the Marantec 220 or 250 operator. Both operators offer safety reverse if an obstacle is hit in either direction or the optional extra additional infra red beam system to completely inactivate  the door if an obstacle is in its path. This is for doors likely to be used very frequently or near public.





Latest Carteck News 2009

Extremely scratch-proof new-look glazing elements, wicket doors, TÜV-tested burglar protection, as well as quicker, cost-effective and solar powered drives – Teckentrup has expanded its range of CarTeck garage door products for 2009. The company showcased all of its innovations at BAU 2009 in Munich in January.



More safety, more convenience, more choice of looks – Teckentrup presented a much further developed garage door range at BAU 2009. Wicket doors, i.e. pedestrian doors integrated in the main garage door, allow you to pop into the garage without having to open the main door. This is particularly useful if another entrance is not available. And the main door remains firmly sealed in spite of the wicket door: A threshold provides a continuous bottom edge. The one-piece floor seal runs across the whole width of the door, keeping rain, dirt, leaves, etc. out. The 45 mm threshold is also extremely low; and the door functions perfectly even on steeply inclined driveways, e.g. for garages located underneath properties. Electrically operated doors have a safety contact which ensures that the main door can only be opened when the wicket door is closed.


The new extremely scratch-proof glazing elements are available in numerous shapes - from porthole windows to windows with glazing bars. They also allow sunlight to enter your garage and offer highly durable attractive architecture with a unique appeal. The high-quality aluminium frame of Type D and Type E are particularly elegant.

Burglar and accident protection are important security and safety features. Teckentrup doors are TÜV tested: The independent German test authority confirms the burglar resistance of the electrically operated garage doors. Therefore, all CarTeck doors display the TÜV mark. Furthermore, operational safety is guaranteed by a photo cell which is installed approximately 20 cm above the ground and stops the door as soon as the beam of light is broken. The components are fully protected inside the frame when the garage door is closed. The Teckentrup 5-point guarantee underlines the extreme durability of the doors; guaranteed for more than 10 years for doors with special high-performance springs (CarTeck door GSW 40).

The new “speed” drive increases convenience: It can open a door in half the usually required time. The new CarTeck drive generation “2” reduces energy consumption in stand-by mode by 25% compared to conventional solutions. And the new, flexible energy-saving lamps on the drive allow you to light up your garage perfectly. Drive retrofitting is usually possible.
A rechargeable battery operated drive is now also available for garages not connected to the mains. The rechargeable battery can be simply taken indoors and charged overnight. The environmentally friendly alternative: Power supplied from a solar module that can be installed on the garage roof.



Even remote control of your garage door is now easier: The new handheld transmitter “D323” plugs straight into your car’s cigarette lighter with no need for batteries, allowing you to open your garage door from the comfort and security of your car
