Insulated Side Hinged Garage Doors

Insulated Side Hinged Garage Doors from The Garage Door Centre

Insulated Side Hinged Garage Doors

A traditional door mechanism matched with convenient insulating properties, insulated side hinged garage doors are a hugely popular choice.

Gone are the days where side hinged doors could only offer traditional, timber side hinged garage doors! This classic door type is now available in not only single skin steel, but insulated double skin steel too, along with various design options and finishes.

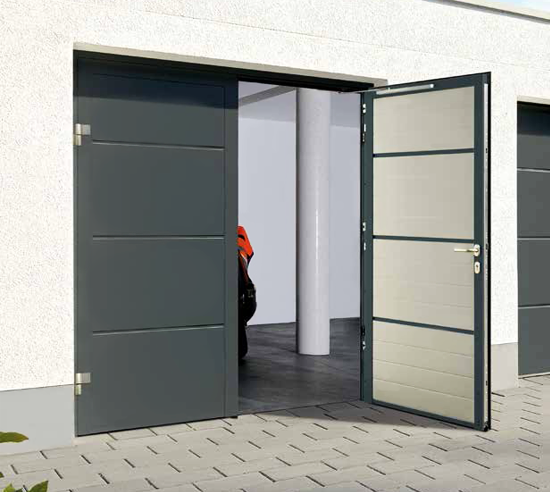

What Can Insulated Side Hinged Garage Doors Offer?Insulated Side Hinged Garage Door Panel

Often, the primary reason why one may choose to invest in a pair of side hinged garage doors is because they offer easy access for both pedestrians and vehicles. The side hinged door type also proves to be particularly popular for those who don't just store a car in their garage.

Many people now use their garage as a storage space with various valuable items, or even as an additional room to the house. If this applies to you, it is in your interest to make sure the garage door offers good performance levels and isn’t just filling a hole. A high quality door is especially important when the garage is integral.

Our top of the range double-skinned side hinged doors not only offer effective insulation, but also a significant level of strength, and therefore great security when the correct locking is incorporated.

Side Hinged Benefits:

- Appreciate the traditional mechanism of side hinged garage doors with the modern qualities now available, including effective insulation

- Keep your garage warm in the winter and cooler during the summer months

- Benefit from acoustic insulation

- The thicker door leaf is insulating, as well as in-turn creating a door with greater durability and physically stronger properties.

- Our insulated side hinged doors are bespoke and made to measure, meaning a snug fit is guaranteed and insulation is enhanced.

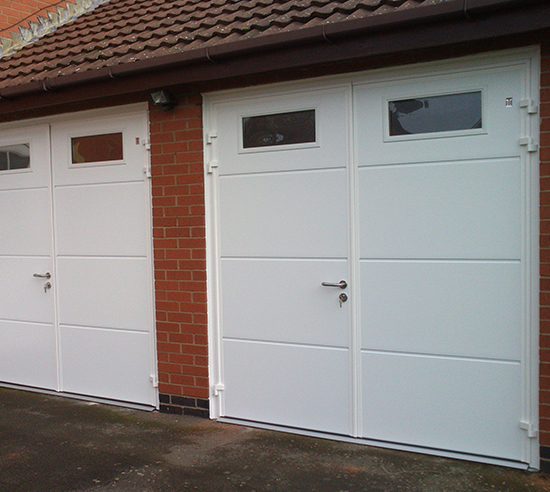

Hormann Insulated Side Hinged Garage Doors Carteck Insulated Side Hinged Garage Doors

Require Greater Levels of Insulation?

If your project requires a stated level of insulation with a tested U-value, then take a look at our Teckentrup Swing Secure range. It boasts premium levels of performance with an industry leading overall specification on all aspects.

The tested and certified thermal insulation is 1.4 Wm2K, better than anything else currently available as a double doorset. Made to measure, 62mm thick, stainless steel handles and industry leading construction methods make it one of the highest quality steel insulated garage doors available. Plus, there are many options to personalise to suit your requirements.

Teckentrup 62-2 Certified Performance:

Insulation (Thermal Transmittance): EN 13241-1B: 1.4 Wm²K

Resistance to Windload: EN 12424: Class 2

Watertightness: EN 12425: Class 2

Air Permability: EN 12426: Class 2

Operating Forces: EN 12604: 150N

Operating Cycles: EN 1191 C5 (200,000)

Security (optional): EN 1627/30 RC2 or Secured by Design Police Preferred Specification

Additionally, you can upgrade to LPS 1175 SR1 with a Secured by Design specification or RC2, a European standard recognised increasingly more within the UK. Ultimately, this is tested security for complete peace of mind, and a great looking, high performance set of hinged doors on your garage.



Offering the very best insulation is a priority for us, which is why we only work with reputable manufacturers with quality products.

Follow the buttons below to find out more about the manufacturer's side hinged ranges.

Teckentrup Insulated Side Hinged Garage Doors Ryterna Insulated Side Hinged Garage Doors
Hormann Insulated Side Hinged Garage Doors Carteck Insulated Side Hinged Garage Doors
