Carteck SLX Vision Sectional Garage Door Carteck Aluminium Sectional Doors

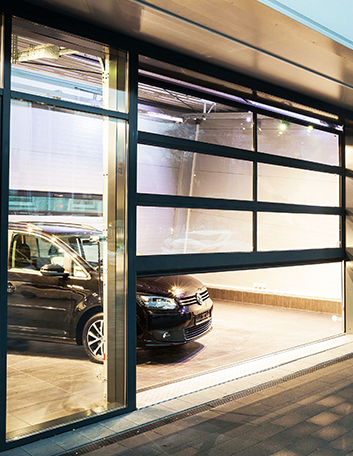

Introducing the elite glazed sectional garage door, exuding exclusivity in its sleek design: the SLX Vision.

The SLX utilises the same trusted lifting gear as the standard Carteck sectional range, assuring owners of smooth operation and reliability, in addition to ultimate style.

Key Features:

- Resistance to windload: Class 2

- Watertightness: Class 2

- Air Permability: Class 2

- Thermal Transmittance: 3.5 W/m²K

- Operating Forces (hand operated): 150N

- Independently tested and CE marked

- Electric operation for smooth and easy opening

- Choice of vision options to suit application design

- Manufacturer's guarantee

- Framing available in selection of colours

Details

The SLX Vision is operated via remote control operator for ease of use, and uses the same lifting gear and concealed lifting springs and standard Carteck doors.

The door itself is made up of the vision panels, consisting of 40mm thick hollow aluminium profiles. The polymer double glazing offers scratch-resistant properties for aesthetic durability, along with six variations in design.

Warranty

2 Years Manufacturer's Guarantee - polymer and aluminium window units

5 Years Manufacturer's Guarantee - rollers, hinges, cable pulleys, cables and standard springs

10 Years Manufacturer's Guarantee - on panels against rust penetration from inside to outside, against door panel seperation from steel from foam, material and manufacturing flaws of non-moving parts of the frame that are verifiably unusable or where usability is substantially compromised, floor seal, intermediate seals, side seals and lintel seal against rotting

The guarantees do not apply for applications located in extreme conditions, i.e: a coastal climate

Door Designs & Mullions

Sections

The number of sections there are is dependant on the dimensions of your door.

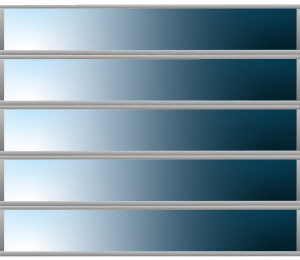

The below represent the appearance of the doors with differing sections.

4 Sections - Doors up to 2280mm high	5 Sections - Doors up to 2835mm high	6 Sections - Doors up to 3000mm high

Vision Options

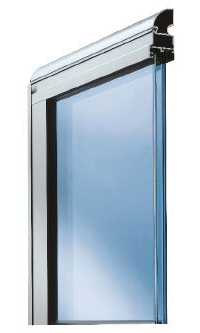

Windows are constructed with double-paned, stratch-resistant polymer.

Each design is available dependant on your requirements in terms of shading and visibility from outside light.
