Ryterna Insulated Side Hinged

Ryterna Insulated Side Hinged Garage Doors

The energy efficient Ryterna side hinged doors have double skinned insulated steel panels with PU foam and are fitted with a rubber seal around the perimeter and between the leaves.

The doors also have the option of scratch proof double glazed windows too for all round insulation.

Every door is supplied with a very sturdy steel box section sub fixing frame finished in the same colour as the doors, except for with the laminate foil coted doors where a complementary paint colour finish is used.

The doors are pre- hung with all furniture generally factory fitted for a more accurate and easier installation.


Door Styles:

(Click below on the model to view the door styles)

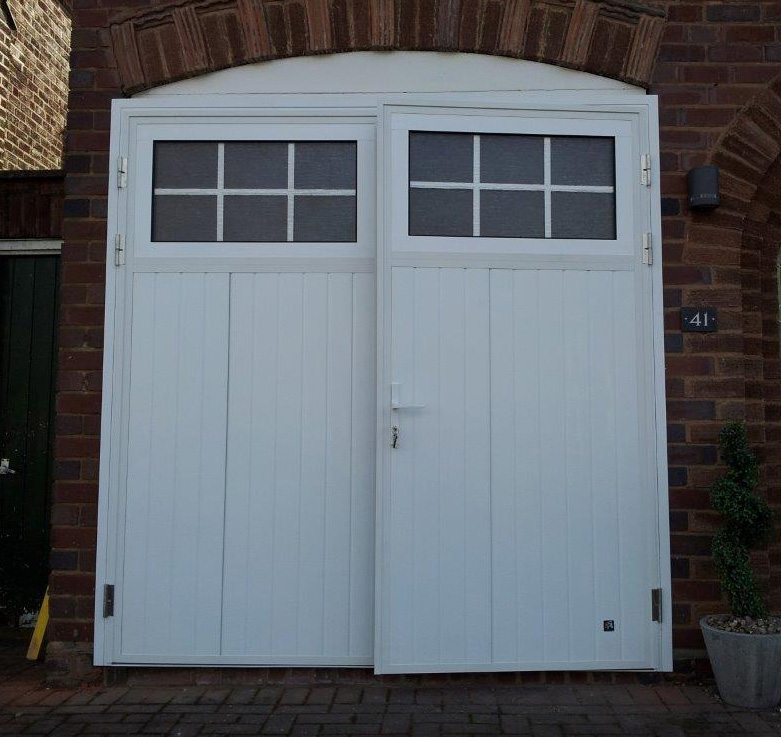

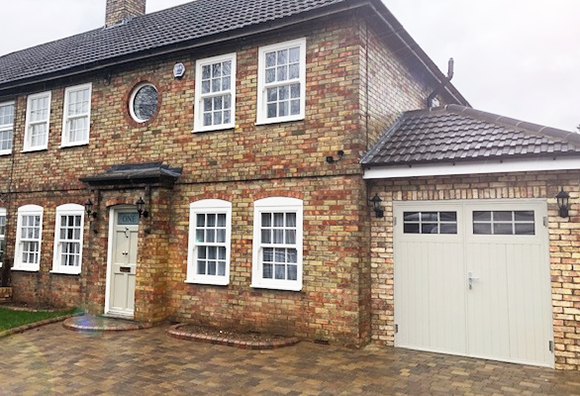

  • Traditional doors are a classic design. The double glazed panels are available with clear, matt, "frosted" or tinted glass. Available in any RAL Colour or "Golden Oak" colour.

  • Flush designs are available in either woodgrain or stucco finish. The doors can be personalised with attractive window options. With a choice of vertical or horizontal panels and are available in any ral colour.

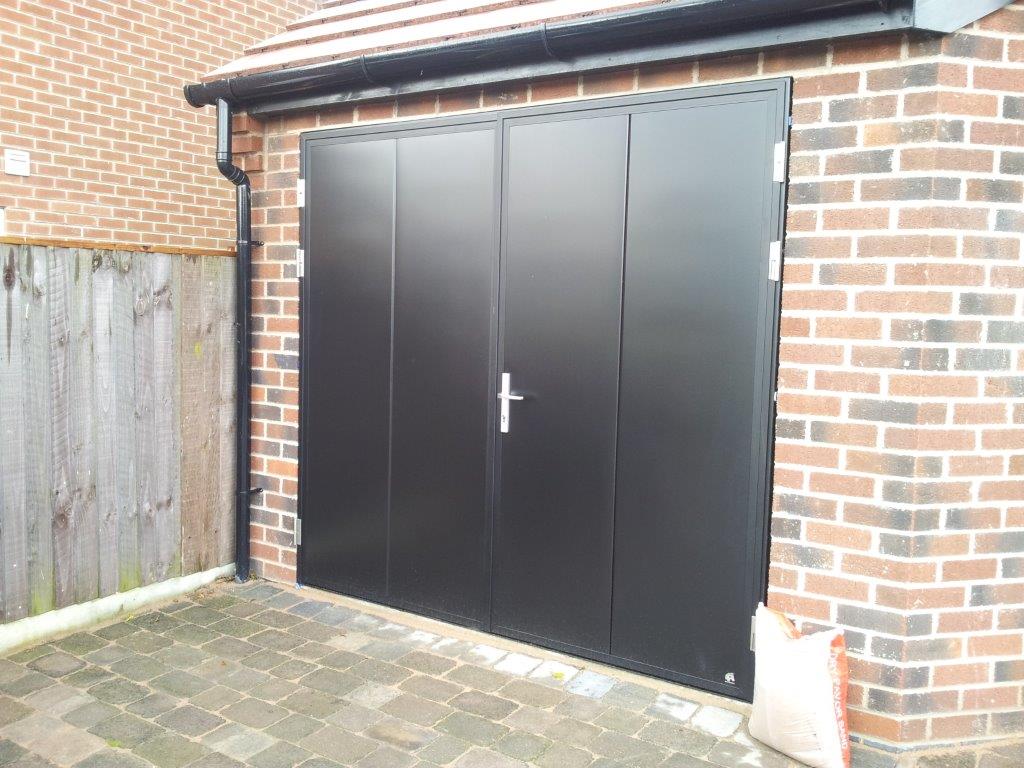

  • Slick designs have no ribs and no embossing, just a smooth panel. Available in a range of colours and with the option of stainless steel windows or appliqués and metallic finish.

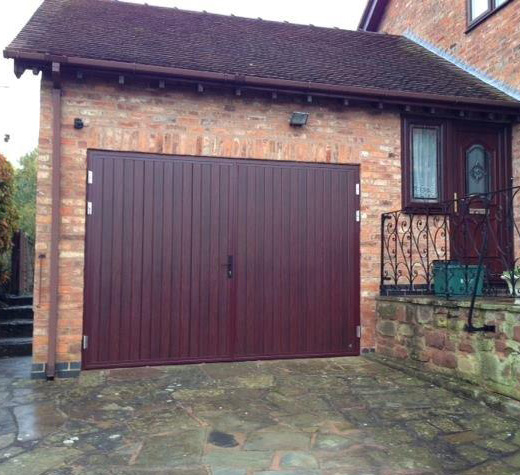

  • Rib designs are available in both horizontal and vertical panels and in various woodgrain or stucco colours making it a popular choice.

  • Midrib doors resemble solid timber planks and are available in various finishes and colours, including smooth metallic.

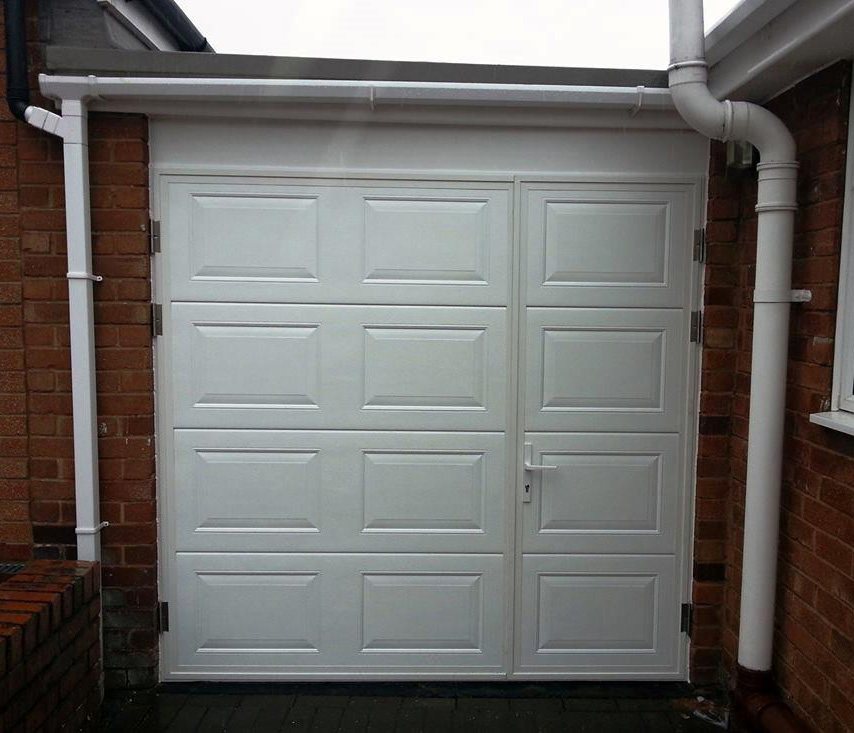

  • Cassette (Georgian) doors are available in the traditional 50/50 split or 1/3-2/3rd split.

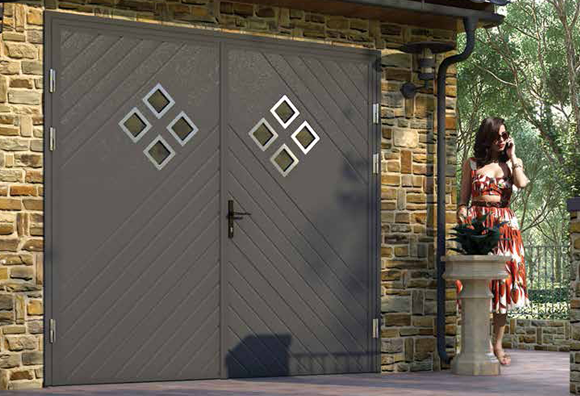

  • Chevron doors are a traditional design available in various finishes and colours.



Visit The Garage Door Centre showroom

Ryterna Side Hinged Features Include:

  • Doors are available up to 3m wide and up to 2.5m high (for larger sizes, please enquire).

  • All fixings are included to ensure easy and fast fitting.

  • Door stays are an additional option. These come pre-assembled and are easy to fit and maintenance free. Adjustable leaf opening angle 90-140 degrees.

  • Raised threshold made of zinc coated rectangular steel tube. Rubber sealing.

  • Flat threshold made of zinc coated steel tape. Brush sealing.

  • Zinc coated, robust and maintenance free steel frame. Painted the same colour as the door or different if specified.

  • First door leaf can be left hand or right hand swing. The door can be split 50/50 or 1/3rd- 2/3rd.

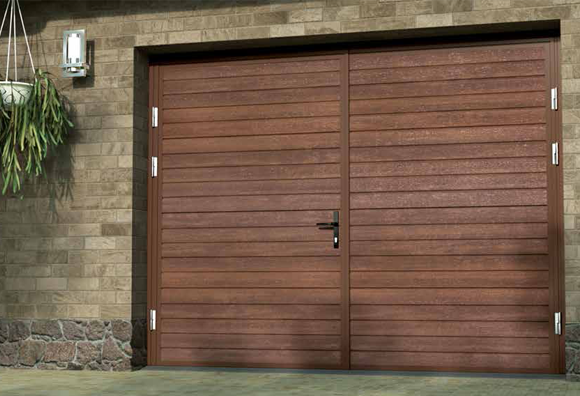

Ryterna Chevron Design Side Hinged Garage DoorRyterna Ribbed Design Side Hinged Garage Door

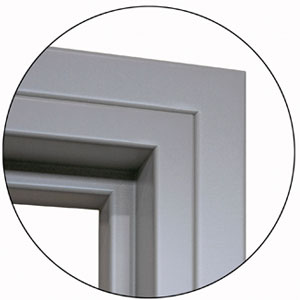

Frame Mouldings

This option allows the door to be fitted flush with the front wall hiding any small gaps or distressed brickwork. Same colour as frame.
Left hand image - without moulding | Right hand image - with moulding

Frame without mouldings - Ryterna Insulated Side Hinged Garage DoorsFrame with Mouldings - Ryterna Insulated Side Hinged Garage Doors

Fitting Options

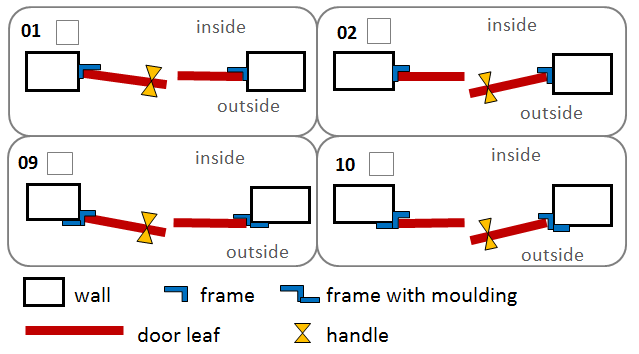

Garage doors can be fitted flush with the front wall or deepened in to the opening. Recommended fitting - flush with the front wall. In this case door leaf can open up to 140 degrees angle. For all side hinged garage door fitting positions please check picture below:

Fitting options for Ryterna Insulated Side Hinged Garage Doors

Handle Options

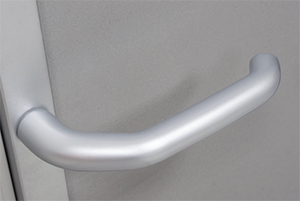

Locks available in white, black or aluminium as standard.

White handle for Ryterna Insulated Side Hinged Garage Doors Aluminium handle for Ryterna Insulated Side Hinged Garage Doors Black handle for Ryterna Insulated Side Hinged Garage Doors



Window Options:

Square Stainless Steel Windows - Ryterna Insulated Side Hinged Garage Doors

Square Stainless Steel Windows with safety glass
clear, opaque, obscure, tinted.
150mm x 150mm, 230mm x 230mm, 300mm x 300mm

Long Stainless Steel Window - Ryterna Insulated Side Hinged Garage Doors

Long Stainless Steel Window (with safety glass)
clear, opaque, obscure, tinted.
800mm x 150mm

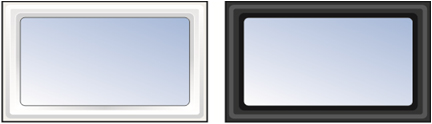

Plastic Windows (scratch proof double glazing) - Ryterna Side Hinged Garage Doors

Plastic Windows (scratch proof double glazing) Black or White
clear, opaque, obscure, tinted.
440mm x 280mm

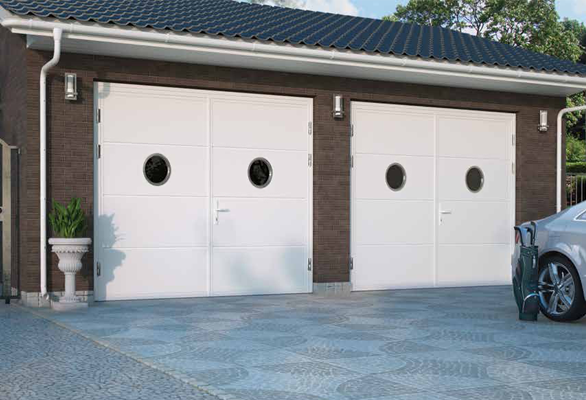

Round Stainless Steel Window - Ryterna Side Hinged Garage Doors

Stainless Steel Windows (Round) with safety glass
clear, opaque, obscure, tinted.
150mm, 230mm, 300mm

Plastic Windows (sunrise) - Ryterna Side Hinged Garage Doors

Plastic Windows (Sunrise)
White only
440mm x 280mm

Plastic Windows (with Cross decoration) - Ryterna Side Hinged Garage Doors

Plastic Windows (with 'Cross' decoration)
White only
440mm x 280mm

Downloads

View Ryterna Side Hinged Garage Doors in Product Catalogue Download Ryterna Side Hinged Garage Door Brochure
