Ryterna RD100 Garage Door Ryterna Aluminium Entrance Doors

The Ryterna RD100 Aluminium Entrance Doors are made to order.

You can choose your window frame designs, appliques and door colour.

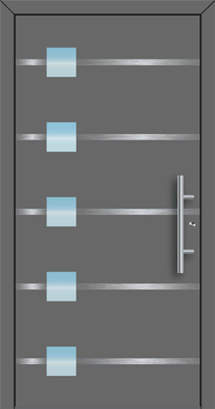

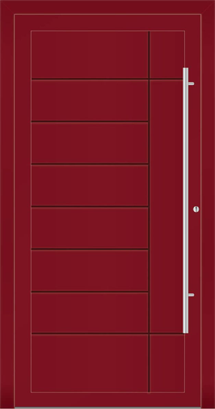

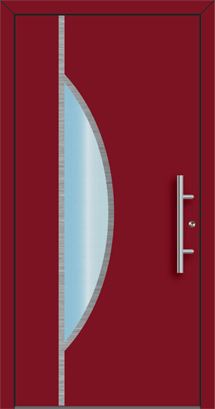

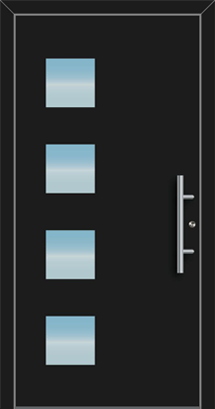

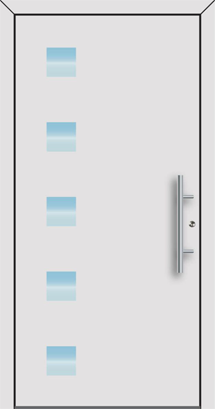

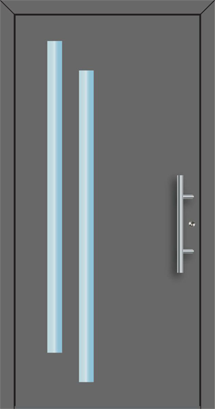

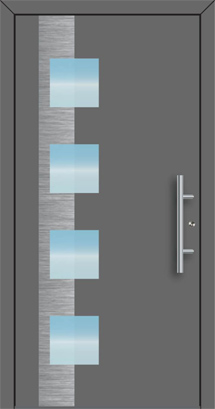

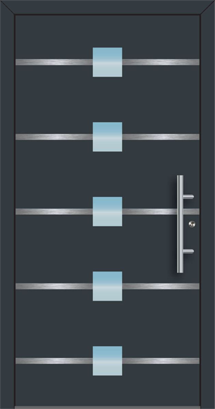

Aluminium Entrance Door Designs

Below are just some examples of the standard door designs, however the potential designs are vast as you can alter pre-existing designs, or make your own.

> The appliques are made from 1mm thick durable aluminium.

> Custom glazing options are available with house number, company name or logo can be added.

Ryterna can paint your door almost any colour, which means you can match your front entrance door with your facade or garage door.

Windows

Ryterna offer 9 basic door leaf glazing options. In addition you can modify them by changing the layout and quantity of windows. All windows have quadruple safety glazing. No window frame is required.

Benefits

> Made to order up to 1250 mm wide & 2250 mm high

> Insulated aluminium frame and leaf – U values ~ 0.65 W/m²K

> Opening inside or outside (optional)

> Triple or quadruple safety glazing

> Triple all round perimeter rubber weather sealing

> Two types of door frames & two types of door leaves

> Individual design along with wide range of standartised designs

> Certificated according to security and burglary. Resistance Class RC3

Features

> Frame is made of aluminium profiles with 34 mm thick thermal break.

> Leaf is 100 mm thick with aluminium sheet skin.

> Leaf can be with 57 mm thick infill panel or safety glass.

> U-value up to 0.65W/m²K

> Quadruple safety glazing for flush doors.

> Magnetic threshold.

> Secure multipoint lock.

Technical Specifications – Ryterna RD100 Aluminium Front Entrance Door

The Ryterna RD100 represents the pinnacle of front entrance door engineering, offering top-level thermal performance and certified security in a stunning, maintenance-free package. With a substantial 102 mm thick insulated leaf construction, aluminium profiles featuring a 34 mm thermal break, and an outstanding U-value of 0.65 W/(m²·K), the RD100 delivers the highest thermal efficiency in the Ryterna range. Certified to RC2 security standard (with RC3 upgrade available), featuring triple perimeter weather sealing with a magnetic threshold, and offering the same design coordination as your Ryterna garage door, the RD100 is the ultimate choice for homeowners who demand the very best in performance, security, and aesthetic excellence.

✓ Door Leaf Construction: 102 mm thick leaf with 2.5 mm aluminium sheet skin (single sheet construction)

✓ Frame Construction: Aluminium profiles with 34 mm thick thermal break - the widest thermal break in the range for maximum insulation

✓ Infill Panel Options: 57 mm thick insulated panel or triple/quadruple safety glazing

✓ Thermal Performance: U-value up to 0.65 W/(m²·K) - the best thermal performance in the Ryterna entrance door range

✓ Insulation Material: Freon-free polyurethane (PU) foam throughout inner core, assembly profiles and frame

✓ Weather Sealing: Triple all-round perimeter rubber weather seals for superior draught-proofing and weather protection

✓ Magnetic Threshold: 'Pop-up' magnetic strip creates perfect seal when door closes; drops back into groove when opening for wheelchair/pram access

✓ Security Classification: Certified to RC2 (Resistance Class 2) as standard; RC3 upgrade available for enhanced security against forced entry

✓ Glazing Options: Triple safety glazing standard; quadruple safety glazing available for flush designs

✓ Lock Options: Multi-point locking systems (3-point or 5-point); electric locking with keypad/finger scanner compatibility available

✓ Hinge System: Heavy-duty 3-piece hinges supporting doors up to 120 kg; fastened with self-drilling screws in reinforcement profiles

✓ Frame Types: Two options available - Flat frame or Jutted frame

✓ Leaf Types: Flush leaf with aluminium sheet skin; three-contour sealing for perfect insulation

✓ Opening Direction: Opening inwards or outwards (optional)

✓ Certification: Tested and certified by IFT testing institute in Rosenheim, Germany

✓ Performance Standards: Certified according to European security and burglary resistance standards; independently tested for thermal, wind, and water resistance

✓ Finish & Coating: Durable powder-coated aluminium; maintenance-free construction resistant to rot, warping, corrosion, and UV fade

✓ Design Flexibility: Wide range of standardised designs plus custom bespoke options; can match garage door panel styles (Rib, Midrib, Flush, Toprib, Georgian)

✓ Colour Options: Full RAL colour range; wood-effect finishes (Golden Oak, Old Oak, Rosewood); can precisely match Ryterna garage doors using identical colour batches

✓ Handle Options: Extensive range of brushed stainless metal handles in various styles and heights (500mm to 1800mm); pull handles and lever handles available

✓ Customisation: Stainless steel appliqués, carving options, inlaid metal details available; bespoke designs possible

✓ Accessories: Optional aluminium cill profiles available in multiple heights (20mm, 58mm, 125mm)

✓ Build Quality: Made-to-measure precision manufacturing; top-quality product suitable for premium new builds, renovation projects, and heritage properties

✓ Warranty: 5-year manufacturer's warranty; expected lifespan 25–30+ years with minimal maintenance

Size Ranges & Installation Options

Standard Made-to-Measure Sizes

• Minimum width: 400 mm

• Maximum width: 1,250 mm (up to 1,260 mm available - consult manufacturer)

• Minimum height: 1,000 mm

• Maximum height: 2,250 mm (up to 2,500 mm available - consult manufacturer)

• All doors manufactured to exact millimetre specifications

Security & Locking Systems

Multi-Point Lock Options

• L3P: 3-point multi-point lock with day & night function

• L3P+D&N+EM electric: 3-point lock with electric latch and temporary disable option

• L5P: 5-point multi-point lock with automatic locking on closure; two round latch bolts, deadbolt and hook bolts

• L5P+panic electric: 5-point lock with panic function; all latches and deadbolt operated by electric drive

• Compatible with finger-scanner and keypad systems (optional)

Performance Advantages

Why Choose the RD100 Over the RD80?

• Superior thermal insulation: 0.65 W/(m²·K) vs 0.69 W/(m²·K) - better heat retention and lower energy costs

• Thicker insulated panel: 57 mm vs 41 mm - enhanced thermal barrier and acoustic dampening

• Wider thermal break: 34 mm vs 20 mm - greater separation between interior and exterior for maximum efficiency

• Thicker door leaf: 102 mm vs 92 mm - premium construction with enhanced robustness

• Ideal for: Passive houses, high-specification new builds, premium renovations, and properties where maximum thermal performance is essential

Design Coordination

The RD100 front entrance door uses identical panel designs, colours, and finishes to Ryterna's sectional garage door range. This allows you to create a perfectly coordinated exterior where your front door matches your garage door exactly—using the same ribbed, midrib, flush, toprib, or Georgian cassette profiles with identical RAL or wood-effect colours. With the RD100's superior thermal performance and security rating, you get the ultimate combination of aesthetic harmony and technical excellence across your entire property façade.

Warranty Details

Enjoy peace of mind and long-term performance when your Ryterna RD100 door is installed, maintained, and operated according to guidelines. Coverage applies to doors used at standard rates within the country of purchase.
