Samson HomeGuard Garage Door Samson Steel Pedestrian Doors

The Home Guard is a steel doorset designed to provide a one hour certified fire protection and is for use between your integral garage and main house. It has far higher levels of security than any other comparable door with multi point locking and a holiday locking mode, providing a second set of security bolts on a different cylinder.

The door is purpose made as standard for a perfect fit and available in almost any colour with one side different from the other if required as one side will be inside your home and the other facing into your garage.

High quality stainless steel lever handles are fitted as standard and various thresholds are available depending on the floor details.

Made to Measure

All steel doors are made to order in the UK factory, they are available in a wide range of heights and widths to suit any requirement, and are delivered fully assembled.

Sizes and Frames:

600mm - 1350mm wide
1860mm - 2800mm high

95mm single rebate C frame

Material: Magnelis ® 1.2mm skins, 1.5mm frames

4 stainless steel dog bolt hinges

15mm standard threshold

Side & Overpanels

Hardware:

Arrone DIN standard lock, 65mm backset

HOOPLY Euro profile security lock, 60mm backset

EXIDOR/BRITON 200 series panic hardware

Robust TS5.225 door closer

Zero Z105Z friction stay

250mm cavity plates

Spy hole

Letter box

Security Upgrades

If the application requires additional security measures, we can get the HomeGuard equipped with an official RC1, RC2 or RC3 security upgrade.

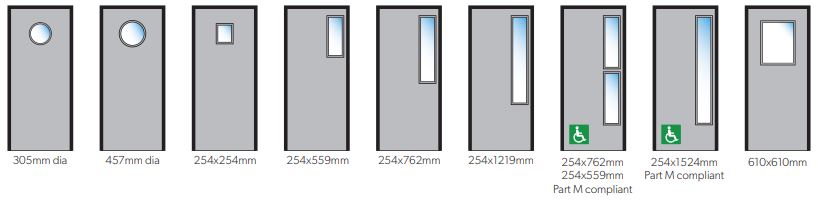

Choice of window options:




Choose from either a flat finish or the traditional look from vertical groove design.

Polyester powder coated as standard in one of 50 colours available and three timber woodgrain effects (extra charge) or a special RAL or BS (extra charge).

Also available in stainless steel, with brushed, polished and patterned finishes. Alternatively, the external doors are available unfinished for site finishing.

 Standard PPC Colour Range
