Hormann Promatic




Manufacturer:
Hormann
Door Type:
Electric Operators
Material:
Prices from:
£

A superb electric operator for most up and over and sectional doors up to 7 feet high and up to 14 feet in width. Supplied with two remote transmitters as standard.

To make an enquiry about this product, please click the button "Make an enquiry" below this message, or call 0800 525 442




View Related Products
  • description

Promatic Series 4 New Features Include:

- 40% faster opening speed* up to 20cm/s

- Convenient garage ventilation

- LED lighting up to 2x brighter

 - Networked with Smart Home systems via the standard HCP interface

- Low power consumption in standby below 1 watt

Please note that this operator is not currently available to be installed with a battery backup system.

Standard equipment

The Hormann Promatic Series 4 Operator comes as standard with two 4-button hand transmitters HSE 4 BS black textured surface, with the option of one or two extra HSE 2 BS transmitters or an extra HS 5 BS transmitter.

Housing
Plastic
Temperature range
from - 20 °C up to + 60 °C

Operator details

24 V DC gear drive, mains voltage 230 - 240 V AC, 0.2 kW, push and pull force 600 N, peak force 750 N, opening speed 20 cm/s (for sectional door).

Max door width 5000mm.

Max door surface 11.25m2.

Electronic control unit
Microprocessor control, automatic adjustment of safety cut-out and travel limits, soft start and soft stop, automatic timer adjustable, hold-open time 30 sec. after activation, impulse control.

Operator boom FS 10
Self-supporting steel boom with polyester/polyamide toothed belt, plastic slide carriage and automatic belt tensioner.1-piece, completely pre-assembled. This operator is supplied with the K boom for the doors listed below:

Up-and-over doors up to 2500 mm high
Sectional doors with track application N up to 2250 mm high
Sectional doors with track application L/Z/H up to 2125 mm high
Total length 3200 mm, travel distance 2475 mm

Operator Accessories

Comes with LED light as standard.

The Promatic is supplied with two transmitters as standard when purchased. Other remote transmitters and access control systems are available from the selection shown below and other controls are available to link in with Homelink systems and also vehicle transmitter systems.

All the latest series 3 Bi Secur operators offer the very highest levels of security and have a patented latch system not available in any other brand of operator.

HS 1 BS HS4 BS HS5 BS HSE2 BS

To view the whole range of Hormann remote control accessories, view the Hormann Remote Control Operators page.

No Power?

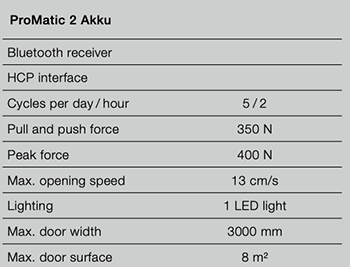

The Hormann ProMatic 2 Akku is available for garages without power!

Hormann Akku

Please note that this operator is not currently available to be installed with a battery backup system.
