Carteck GSA Vision Sectional Garage Door Carteck Aluminium Sectional Doors

Carteck SLX Vision – The Ultimate Design Statement

Introducing the elite glazed sectional garage door, exuding exclusivity in its sleek design: the Carteck SLX Vision. This panoramic, glazed sectional door is designed for maximum light and impact. Replacing solid steel panels with large, glazed sections, it offers a striking, contemporary look ideal for modern homes, showrooms, and high-end garages. The SLX Vision transforms the garage door from a functional barrier into a key architectural feature.

Glass sectional door with design of exclusivity and unique contemporary style.

Teckentrup CarTeck Brand and Manufacturing Quality

The SLX utilises the same trusted lifting gear as the standard Carteck sectional range, assuring owners of smooth operation and reliability, in addition to ultimate style. Built by Teckentrup, a leader in door technology, the SLX Vision uses premium aluminium framing and high-performance glazing. These automated doors employ the same proven CarTeck lifting mechanisms and concealed springs as the standard range, ensuring reliable operation combined with stunning aesthetics.

Design and Glazing Construction

The door itself is made up of the vision panels, consisting of 40mm thick hollow aluminium profiles. The polymer double glazing offers scratch-resistant properties for aesthetic durability, along with six variations in design. The SLX Vision features full-width vision panels that flood the garage with natural light while creating a dramatic, modern statement. The aluminium frame provides structural integrity while maintaining slim sightlines, and the scratch-resistant double-pane polymer glazing delivers thermal performance alongside visual impact. Available in multiple glazing options including clear, frosted, or tinted finishes, the door can be tailored to balance privacy, light transmission, and architectural effect.

Certified Performance Characteristics

As part of the CE marking process, the SLX Vision has been independently tested to European standards to allow fair comparison between products:

✓ Resistance to windload: Class 2 (EN 12424)
✓ Watertightness: Class 2 (EN 12425)
✓ Air Permeability: Class 2 (EN 12426)
✓ Thermal Transmittance: 3.5 W/m²K (EN 13241)
✓ Operating Forces (hand operated): 150N (EN 12604)
✓ Independently tested and CE marked

Thermal and Acoustic Performance

Despite the glazed construction, the 20mm double-pane polymer glazing provides meaningful thermal insulation, far superior to single glazing. The aluminium frame incorporates thermal breaks to minimize heat transfer, while perimeter seals prevent draughts. The door delivers certified thermal performance while flooding your garage with natural daylight.

Design Options: Frame Colours and Glazing

The aluminium framing is available in a selection of colours to suit different building styles. Glazing options include:

✓ Clear glass for maximum light and visibility
✓ Frosted or translucent finishes for privacy
✓ Tinted glazing for solar control and aesthetic effect

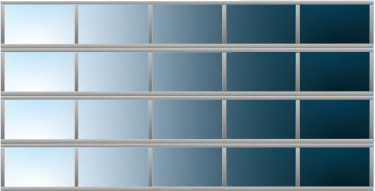

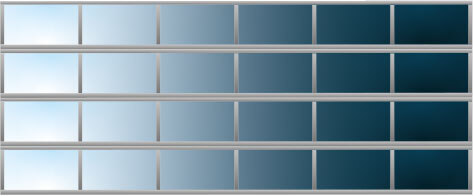

✓ Six vision style variations
✓ Choice of vision options to suit application design
✓ Custom configurations to match architectural requirements

The made-to-measure manufacturing ensures the glazing module layout is proportioned correctly for each specific opening size.

Vertical Operation and Space-Saving Benefits

The SLX Vision operates identically to standard CarTeck sectional doors, rising vertically and tracking back under the ceiling with no outward swing. This preserves 100% of the driveway space and allows parking right up to the door. The vertical lift mechanism maximizes drive-through width and height, ideal for modern vehicles.

Automatic Operation – Electric Only

The SLX Vision is operated via remote control operator for ease of use. The concealed operator sits above the door, providing smooth, quiet motion with soft-start and soft-stop technology. Control options include handheld transmitters, wall stations, external keypads, and smart-home integration for modern connected living.

Electric operation for smooth and easy opening as standard.

Safety Features and Compliance

The SLX Vision includes comprehensive safety features fully certified to UK and European standards:

✓ Safety Sensing – The door stops and reverses if it touches a car or person
✓ Enclosed Cables and Springs – Concealed lifting springs with no exposed moving parts that could cause injury
✓ Pinch Protection – Panel joints are shaped to prevent finger entrapment
✓ Secure Tracks – The door is captive within the tracks, preventing it from falling
✓ Certified Safety – Full CE/UKCA marking

Security and Durability

The rigid sectional design is inherently more secure than traditional panel doors. When closed and locked by the electric motor, it forms a solid wall that is difficult to breach. The aluminium frame is corrosion-resistant and requires only occasional cleaning to maintain its appearance. The scratch-resistant polymer glazing ensures long-lasting aesthetic durability.

Usage Scenarios

Ideal for design-led projects, modern homes, and new builds in contemporary styles. Perfect for properties where you want the garage to make a statement, or where natural light inside the garage is a priority. Popular for showrooms, workshops with display areas, and luxury home garages where the door becomes part of the architectural composition.

Warranty Coverage

2 Years Manufacturer's Guarantee – polymer and aluminium window units

5 Years Manufacturer's Guarantee – rollers, hinges, cable pulleys, cables and standard springs

10 Years Manufacturer's Guarantee – on panels against rust penetration from inside to outside, against door panel separation from steel from foam, material and manufacturing flaws of non-moving parts of the frame that are verifiably unusable or where usability is substantially compromised, floor seal, intermediate seals, side seals and lintel seal against rotting

The guarantees do not apply for applications located in extreme conditions, i.e: a coastal climate.

Sizes and Specification

The SLX Vision is available made-to-measure up to 4000mm wide (full width glazing up to 3250mm wide with no mullions, single mullion over 3250mm) and 3000mm high. The number of sections is dependent on door height:

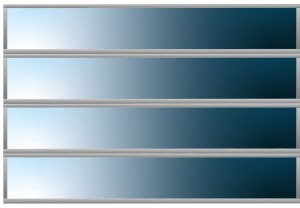

✓ 4 sections – Doors up to 2280mm high
✓ 5 sections – Doors up to 2835mm high
✓ 6 sections – Doors up to 3000mm high

Important Notes

Direct Sunlight – Where doors are exposed to direct sunlight, dark colours should be avoided.

Manufacturer's guarantee included as standard.

Professional Consultation Required

The SLX Vision is a premium, bespoke product that requires expert specification. Please contact our team for technical consultation, design options, and accurate quotations specific to your project requirements.
