Vertico Insulated Aluminium

SWS Vertico Round the Corner Garage Doors

The Vertico, manufactured by SWS, is an insulated round the corner garage door constructed with the highest quality aluminium slats and made precisely to your measurements and requirements without any extra charge.

Manufactured in Germany to stringent engineering standards, the incredibly elegant Vertico garage door provides numerous benefits to you and your garage, inside and out. A significant advantage is the very little encroachment of internal vehicle driving area and, with the horizontal track running arrangement, driveways are kept clear to enable maximum parking area outside of the garage.

Each Vertico garage door is made precisely to measure for every opening, and it will be fitted to maximise the available width and height for convenience when entering or exiting your garage.

SWS Vertico Round the Corner garage door SWS Vertico Round the Corner garage door

Electric Operation

The Vertico garage door comes as standard with radio remote control, motor drive and electronic hindrance stop. Two programmable door opening positions enable the user to have the choice of either car access or a narrower pedestrian access at the simple push of a button. The electric motor guide channel is integrated elegantly into the wall guide channel not down the centre of the garage like traditional motor drives keeping the centre of the garage free of tracking.

View SWS Vertico round the corner garage door in Product Catalogue

The Vertico has been specifically designed as a remote control door system as standard with emphasis on solving all previous shortfalls in other round the corner garage door systems.

A Practical Door Type

Unlike older timber round the corner systems, the Vertico does not have channel guides cut below floor level, but offers a surface-mounted, raised-ground rail which also acts as a weather bar - not a pebble or dirt trap! The components have been designed as one complete system, ensuring a precise operation at all times. Some people worry about losing a wall in their garage but you can either create a false wall and shelving system whilst the door travels behind this wall, or you could allow the requirements of this door's use of the wall to keep your garage neat and organised!

Up until recently, the only garage door systems sliding round the corner were constructed from timber panels that were installed together on-site, with a choice of hardware from companies such as Hillaldam Coburn, Henderson or Ellard. Although this method can still be used today, it is very time consuming to manufacture and install, expensive to construct and does not offer particularly good sealing properties. The automation of such a system is also very difficult to certify to the latest safety standards - whilst also being very expensive.

The Vertico garage door can be specified to open in either direction and if there is not sufficient side room, a false panel section can be inserted. For very large openings, bi-parting doors are possible in even or uneven widths.

Each door includes as standard the following:

  • Any size up to 5600mm wideVertico in Silver

  • Requires only 50mm lintel headroom internally

  • Only 130mm degree of radius at the corner to save lateral wall space

  • Superior surface stability

  • Partial remote control opening option for pedestrian access

  • Purpose made to size as standard

  • Motor guide channel integrated into wall guide channel

  • Highest quality aluminium slats - double skinned, foam filled, insulated

  • Radio remote control operation with electronic safety stop sensor

  • Emergency unlocking from inside

  • Courtesy light when door is opened, switching off automaticall yafter a few minutes

  • All components high quality powder-coated in large choice of colours

  • Top and bottom roller for smooth, silent operation

Colour Finishes

The SWS Vertico offers exceptionally high quality powder coating finish, inside and out, for a long lasting low maintenance garage door system.

Available in 10 standard colours, the Vertico can also be finished in a further 36 Renolit woodgrain finish colours at an extra charge.

The Renolit woodgrain finishes are very tough and carry a 10 year gurantee to back this up. Beautiful woodgrain effects such as Light Oak, Dark Oak, Natural Oak, Rosewood, Oregon Pine and many others are also available to ensure the best coordination with your home.

Vertico Construction & Operation

The Vertico is manufactured with high quality, insulated aluminium slats.

The top track is fixed to the back of the lintel or the ceiling, dependiant upon the headroom available. The bottom track can be lowered into the floor for a lower threshold if required but as standard does perform a very good weather barrier.

Of course, the Vertico is made according to the new EU standards.

Call The Garage Door Centre on 01933 229135

Aluminium is the Ultimate Metal!

Aluminium is the best possible metal for constructional products that are exposed to weather daily, and need to be light whilst sturdy. Therefore, Vertico door systems mainly consist of aluminium components.  Aluminium is corrosion-free, whilst the surface of Vertico aluminium garage doors are additionally coated by a high-quality thick layer stove enamel paint.

Further advantages of aluminium garage door profiles:

CFC-free foaming:
Advantage: silent running, resonance-free, torsion proof

Grooves in profile:
Advantage: higher stability of profile and better optical characteristics

Absolutely colour and light fast:
Advantage: no recoating, colour brilliance for decades

Absolutely safe in function:
Advantage: aluminium is a sturdy and rot-proof metal. But it is all the same very light. The garage doors made of aluminium can always be operated with the very lowest of problems over the years.

The Vertico garage door is the door for a modern day lifestyle with all the added benefits of reliable operation and security, combined with stylish good looks and a range of colours and finished to complement any home.


If you're interested in the SWS Vertico, or would like to find out more information, don't hesitate in getting in touch with our expert team via the contact details below!

Telephone: (01933) 229135

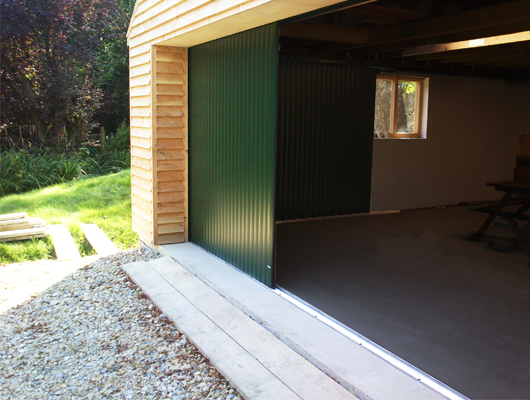

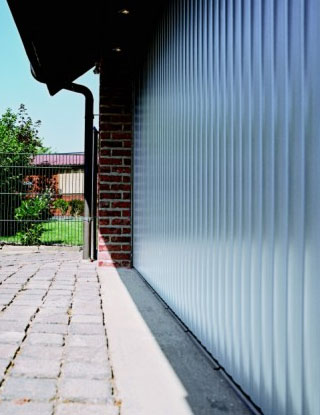

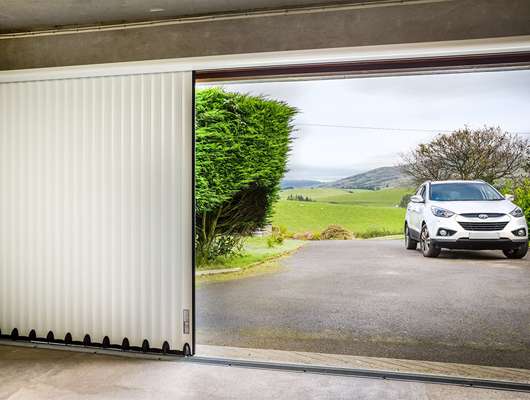

SWS Vertico on drivewaySWS Vertico Blue round the corner door installedWhite SWS Vertico Round the Corner garage doors White SWS Vertico partially opened
