Carteck Georgian Panelled Garage Door Carteck Steel Sectional Doors

Carteck Georgian Panelled – Traditional Elegance Meets Modern Performance

The Carteck Georgian Panelled sectional door introduces a traditional raised-panel effect, giving the door a classic character that complements period properties. This style is perfect for homes with sash windows or brick detailing, where a modern flat door might look out of place. It combines this heritage aesthetic with modern CarTeck insulation and engineering, giving you the charm of traditional craftsmanship with the convenience and performance of a contemporary garage door.

Classic Georgian styled panel design, manufactured to high quality standards by Carteck.

Teckentrup CarTeck Brand and Manufacturing Quality

Built by Teckentrup, a leader in door technology, every Carteck-branded door benefits from proven German engineering and high-quality hardware. The insulated steel panels feature a durable multi-layer coating system designed to withstand demanding UK weather conditions while maintaining a pristine appearance.

CarTeck insulated sectional doors are specifically designed to transform cold, draughty garages into comfortable, usable extensions of the home. The advanced insulation and perimeter sealing stabilise internal temperatures, reducing energy waste and creating a pleasant environment for storage, hobbies, or parking. The range also features integrated CarTeck DRIVE operators, which sit discreetly above the door for a neat, uncluttered interior.

Carteck are a German company held in high regard by architects, fitters and general customers due to the high quality and innovation of their products. They provide a wide variety of surfaces, colours and glazing elements to help personalise your garage door and make it your own.

Design and Panel Construction

The Georgian design features a thoughtfully proportioned panel layout that creates depth and visual interest without appearing overly busy. The embossed rectangular panels give a three-dimensional raised effect, adding character and elegance. This design is particularly effective on period properties or homes where a flat contemporary door would seem out of place. Constructed using polyester coated galvanized steel double skinned 40mm insulated panels, this panelled design is available in woodgrain texture. The panels are more oblong than square like many others making the amount of panels in a door less than the smaller square panels of other designs. This makes the door design ideal for larger width openings as the door has a far more balanced look and is not too busy.

The door is 40mm double skinned as standard and offers great insulation, security and strength in one. The robust double-skinned construction ensures the raised profile remains sharp and defined over time, while factory-engineered joints maintain smooth, quiet operation.

Construction and Insulation Performance

Thick, double-skinned steel panels filled with high-density foam insulation significantly reduce heat loss. This thermal efficiency is crucial for attached garages, helping to maintain a stable internal environment and reduce energy bills. Premium perimeter seals and tight section joints keep out draughts, dust, and moisture, making the garage a more practical space for uses beyond simple car storage.

Design Options: Styles, Colours and Finishes

The Georgian door pairs beautifully with traditional colour palettes—Cream, White, or wood-effect finishes work particularly well to enhance the period aesthetic. The woodgrain texture adds authenticity, softening the modern steel construction for a more sympathetic look alongside brick, render, or timber cladding. Made-to-measure manufacturing ensures the panel layout scales proportionately across any size, maintaining visual balance whether fitted to a single or double garage.

Vertical Operation and Space-Saving Benefits

The door opens vertically within side tracks before curving back to run horizontally along the ceiling. This means there is no outward swing at any point, making it ideal for short driveways or properties opening directly onto pavements. You can park vehicles right up to the door without obstructing movement. The vertical lift design also maximizes drive-through width and headroom—perfect for SUVs, MPVs, and vehicles with roof boxes.

Automatic Operation and Control Options

Designed for seamless automation, the Georgian door works effortlessly with the Teckentrup CarTeck DRIVE system. These integrated drive units sit neatly above the door, providing smooth, quiet opening at the touch of a button. Handheld transmitters allow you to open the garage from the warmth of your car, while internal wall buttons and optional external keypads offer convenient access for the whole family. Smart home integration is also available for modern connected homes.

Safety Features and Compliance

Carteck have produced a range of safety features to ensure durable functionality whilst paying keen attention to detail. With each sectional door, they supply:

✓ Perfect fitting sections – Individual sections are connected by wear resistant galvanized steel hinges which make the door leaf more secure

✓ Profiled spring channel – The contour of the spring channel reduces friction between the channel housing and plastic sliders and ensures that the door runs even more smoothly

✓ Frame base protection against corrosion – A special plastic part ensures that the vertical frame has no contact with the floor; the base area is thus continuously ventilated and protected against corrosion

✓ Safe, quiet running – The robust side hinges with integrated finger protection hold the patented eccentric roller holders

✓ Patented emergency release – Imperative for garages without a second entrance. The emergency release is operated from the outside via a master key system suitable profile cylinder or Kaba cylinder. It decouples the drive and enables the manual opening of the door (pre-equipped for GSW Carteck sectional doors as standard)

Security and Durability

Sectional construction offers superior security compared to traditional doors. The rigid panels are captive within robust tracks and cannot be easily levered outwards. When paired with a CarTeck DRIVE operator, the door mechanically locks in the closed position to resist forced lifting. The durable multi-layer coating and galvanised steel skin ensure the door resists corrosion and maintains its structural integrity for years.

Usage Scenarios

The Georgian door is the natural choice for period properties, conservation areas, and homes where architectural sympathy is important. It suits homeowners who want the thermal efficiency and convenience of a modern sectional door without compromising the character of a traditional property.

Unique Headroom Advantage

The Carteck sectional door uses a different spring balance mechanism to most other sectional doors and this enables the headroom requirement to be only 120mm for most of the sizes available. However unlike other 'low headroom' systems the Carteck will give you a full drive through height when fully open using any one of their superb electric operators, and this is unique! This makes this sectional door ideal for larger garages with bedrooms above, flat roof arrangements with little headroom or just anywhere where you want to maximise the drive through height.

Surface Texture

The Carteck Georgian Panelled Sectional doors are only available in Woodgrain textured surface finish.

✓ Woodgrain Surface

Woodgrain Surface

Sizes and Flexibility

The Carteck Georgian Panelled doors are available in all standard widths from 6'10" up to 18'0" wide with a new range of 'super sizes' offering widths up to a whopping 8000mm wide (26'3").
These super size sectional doors use commercial operating gear and do require more headroom but still offer excellent value for money for any super size garage. *Super-size doors are not available for the Georgian doors.

Carteck also offer many more intermediate standard heights at the same price than others do to maximise the seal and insulation by getting a door the same height as the underside of your lintel avoiding an infill section which is normally not insulated.

Electric Operation

This sectional garage door is available in both manual and electric operation.- see 'electric operation' tab for full details on options
A range of handheld remote controls are available when the door is electronically operated to provide an easy solution to opening your garage door.

Glazing Options

Carteck offer a variety of glazing elements as they are distinctive design features which can enhance the appearance of any garage. The Georgian sectional door is available with the following glazing options:

✓ Type C Glazing
✓ Cross Mullion
✓ Rhombus Mullion
✓ Rectangular Glazing
✓ 'Classic' Glazing
✓ Glazed Strips

---

Type C Glazing

Cross Mullion

Rhombus Mullion

Rectangular Glazing

'Classic' Glazing

Glazed Strips

The Carteck sectionals can now be equipped with mock Coach House style features, the perfect way to emphasise traditional style to a modern door type.

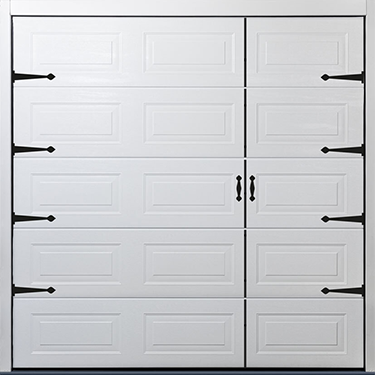

Georgian sectional with mock Coach House style hinges, handles and centre joint (above).

Different variations of the placement of the joint, handles and hinges are available.

Technical Specifications – CarTeck Georgian Insulated Sectional Garage Door

• ✔ Panel & Insulation: 40 mm double-skin steel panels with PU foam; Panel U-Value: 0.56 W/m²K; Complete door U-value: 1.38 W/m²K (8'0" x 7'0" door); Eight-layer construction with sealed top coating, high-adhesion primer, corrosion-resistant galvanised steel, protective rear coat and high-stability foam core; Traditional Georgian cassette panel design ideal for classic facades and character properties

• ✔ Door Performance: Resistance to windload Class 2 (EN 12424); Watertightness Class 2 (EN 12425); Air permeability Class 2 (EN 12426); Operating forces 150 N (EN 12604)

• ✔ Sizes & Fitting: Made to measure up to 5.5 m wide and 3 m high; fits behind the opening to maximise drive-through width and height; bottom profiles in 0/9/17/32 mm to fine-tune finished height; Georgian cassette panel design features timeless appeal

• ✔ Operation & Safety: Concealed torsion springs for safe, smooth operation; integral finger-trap protection along every panel joint; side-mounted brackets with anti-drop protection; CE/UKCA-marked safety compliance; manual operation as standard; automation-ready

• ✔ Weather Sealing: Triple weather seals (bottom, sides and top) block drafts, rain and dust; high-performance insulation maintains garage temperature; reduces external noise intrusion

• ✔ Surface Textures: Woodgrain embossed finish (Georgian design available in Woodgrain texture only per manufacturer specifications)

• ✔ Colour Options: Full Trend colour range including White (RAL 9016), Grey Aluminium (RAL 9007), TT9016 Bling White, Ice Crystal, White Aluminium (RAL 9006), Light Grey (RAL 7035), Window Grey (RAL 7040), Quartz Grey (RAL 7039), Umbra Grey (RAL 7022), Slate Grey (RAL 7015), Anthracite Grey (RAL 7016), Anthracite Textured (RAL 7016), Jet Black (RAL 9005), Steel Blue (RAL 5011), Moss Green (RAL 6005), Fir Green (RAL 6009), Flame Red (RAL 3000), Sepia Brown (RAL 8014), Cream (RAL 9001), Agate Grey (RAL 7038), Silver Grey (RAL 7001), Pebble Grey (RAL 7032), Stone Grey (RAL 7030), Mouse Grey (RAL 7005), Basalt Grey (RAL 7012), Graphite Grey (RAL 7024), Granite Grey (RAL 7026), Graphite Black (RAL 9011), Signal Black (RAL 9004), Gentian Blue (RAL 5010), Pigeon Blue (RAL 5014), Chartwell Green (BS 14 C 35), Sage Green (RAL 130 60 10), Burgundy (RAL 3004), Ruby Red (RAL 3003), Terra Brown (RAL 8028), Nut Brown (RAL 8011), Light Ivory (RAL 1015), Pure White (RAL 9010); Wood-effect finishes: Golden Oak, Rosewood, Night Oak, Winchester; Special RAL colours available

• ✔ Window Options: Rectangle 1, Cross Mullion, or Rhombus Mullion (Georgian-compatible glazing designs); Scratch-resistant polymer double-pane glazing in Clear, Frosted, or Satin finishes; Window frames colour-matched to door panel; Georgian cassette design features beautifully with the addition of windows for enhanced traditional aesthetic and natural light

• ✔ Electric Operation: Compatible with CarTeck DRIVE 500 (500Nm, 180mm/sec, 2x Pearl Twin transmitters, 3 LED motor light), DRIVE 600 (600Nm, 240mm/sec, 2x Pearl transmitters, 6 LED motor light), DRIVE PRO 500 (500Nm, 180mm/sec, flexible control unit mounting), DRIVE PRO 600 (600Nm, 240mm/sec); CarTeck MOTOR L60 (600N, 160mm/sec, lifts doors up to 123kg) and L75 (750N, 200mm/sec, lifts all door sizes, includes wireless wall switch); All systems include built-in WiFi for smartphone control, Amazon Alexa and Google Assistant compatibility, soft start/stop operation, automatic courtesy light, safety sensors and obstacle detection

• ✔ Accessory Packs: Parking Pack 1 (laser sensor for precise parking guidance); Parking Pack 2 (humidity sensor with auto-ventilation); Security Pack 1 (magnetic motor lock up to 300kg force, alarm buzzer); Security Pack 2 (relay for security lighting control, alarm buzzer); Ambience Pack 1 (extra LED light strips, motion sensor); Ambience Pack 2 (relay for garden/security lighting); Ambience Pack 3 (4x magnetic LED strips, 6000 lumens, motion sensor/IR remote); Ambience Pack 4 (external light bars, 1500 lumen/metre); Access Pack 1 (wireless keypad, illuminated keys); Access Pack 2 (2-function wall switch); Access Pack 3 (wireless keypad with stainless steel trim, backlit); Access Pack 4 (keypad with courier function for parcel delivery); Safety Pack 1 (photoeye infrared obstruction detection); Power Pack (battery backup for 5 cycles during power outage); Smart Pack (Smart Home integration, multiple function control)

• ✔ Warranty: 10-year guarantee on door panels and galvanised steel construction against rust or delamination; 10-year guarantee on non-moving frame parts and floor/intermediate/frame seals; 5-year guarantee on paint finish (general areas), 3-year for coastal locations with coastal upgrade; 5-year guarantee on springs, rollers, hinges, cable pulleys and cables (maximum 5 cycles per day); 2-year guarantee on polymer and aluminium window units; 5-year guarantee on DRIVE and MOTOR automation systems (mechanical defects); Coastal exclusion applies unless coastal upgrade specified

Maintenance & Warranty Summary

Regular Maintenance: Regular inspection and light maintenance ensure years of reliable operation. Wipe down panels with mild detergent and water. Lubricate moving parts annually. Check spring tension and automation settings as per manufacturer guidelines.

Important: Warranty applies only to doors correctly installed by approved installers, maintained by a Garage Door Specialist, and operated according to manufacturer guidelines. Coastal exclusion applies unless coastal upgrade specified (installations within 10 miles of sea). Consumable items (transmitters, light bulbs, batteries) not included in warranty.

Colour Options & Notes

✔ Where doors are installed in direct sunlight, we advise avoiding dark colours

✔ RAL and BS colour references are provided as a guide only and represent the closest available match. Exact colour matching cannot be guaranteed due to differences in coating processes, gloss levels, base materials, and surface textures. This also applies to special RAL or BS colours, wood-effect finishes, and other custom colours.

✔ TT9016 Bling White frame legs, headers, and 3D profiles are finished in RAL 9016.

✔ All frame legs, headers, and 3D profiles are available in a smooth finish only.

RAL 3000 Flame Red	RAL 5010 Steel Blue	RAL 6005 Moss Green	RAL 6009 Fir Green	RAL 7016 Anthracite Grey	RAL 7035 Light Grey
RAL 7040 Window Grey	RAL 8014 Sepia Brown	RAL 9001 Cream White	RAL 9006 White Aluminium	RAL 9007 Grey Aluminium	TT703  Grey Metallic Finish
RAL 7039  Quartz Grey	RAL 9005  Jet Black	RAL 7022  Umbra Grey

✔ Golden Oak and Winchester are supplied as laminate finishes. Night Oak and Rosewood feature a painted finish.

✔ Wood Design frame legs, headers, and 3D profiles in Night Oak and Rosewood are finished in a complementary painted wood-effect finish, but an exact colour match cannot be guaranteed. Golden Oak and Winchester components are finished in a flat RAL 8014 colour.

✔ If you are matching your product to existing finishes—especially wood effects such as Rosewood, Golden Oak, Night Oak, or Winchester—we recommend requesting a sample to confirm suitability.

Golden Oak

Winchester

Rosewood

Night Oak
